Write The Equations Required To Obtain The Values Of The Extraction Fractions Yar Ybyc And Ya For The Vapor Power Cycle 1 (57.2 KiB) Viewed 49 times

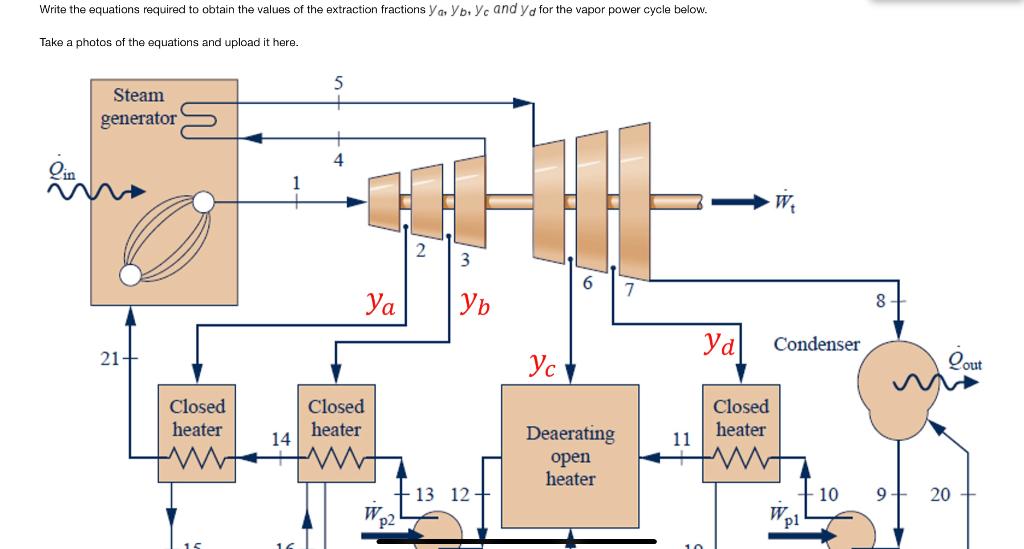

Write the equations required to obtain the values of the extraction fractions Yar YbYc and ya for the vapor power cycle below. Take a photos of the equations and upload it here. 5 Steam generators 4 2 3 Ya Yb 8 Yd Condenser 21+ ус Qout Closed heater WH Closed heater 14 HW 11 Deaerating open heater Closed heater M 13 12+ 10 9+ 20 p2 W pl
5 Steam generator 4 Qin 1 W. 2 3 6 7 Ya 8 Yo Condenser 21+ y Yo Qout Closed heater w Closed heater 14 11 Deaerating open heater Closed heater M 13 12 10 9 20 w p2 p1 15 16 19 17 18 Main boiler feed pump Condensate pump
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
