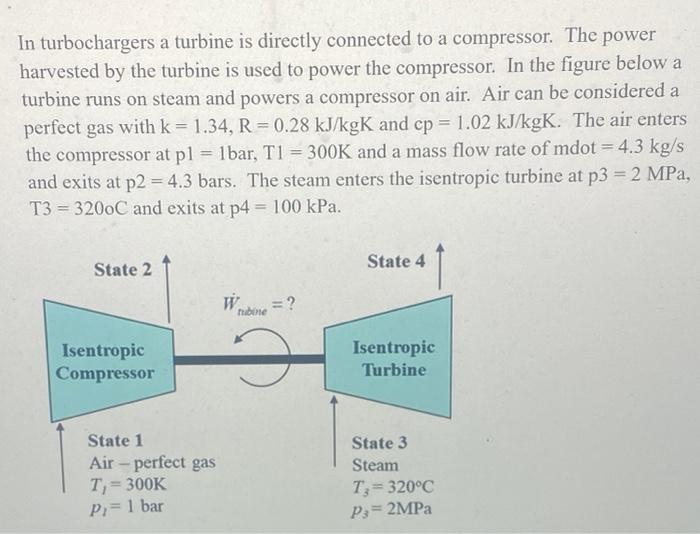

In turbochargers a turbine is directly connected to a compressor. The power harvested by the turbine is used to power the compressor. In the figure below a turbine runs on steam and powers a compressor on air. Air can be considered a perfect gas with k = 1.34, R = 0.28 kJ/kgK and cp = 1.02 kJ/kgK. The air enters the compressor at pl = 1bar, T1 = 300K and a mass flow rate of mdot = 4.3 kg/s and exits at p2 = 4.3 bars. The steam enters the isentropic turbine at p3 = 2 MPa, T33200C and exits at p4 = 100 kPa. State 2 Isentropic Compressor State 1 Air - perfect gas T₁ = 300K P₁= 1 bar W = ? tubine 9 State 4 Isentropic Turbine State 3 Steam T₂=320°C P3= 2MPa

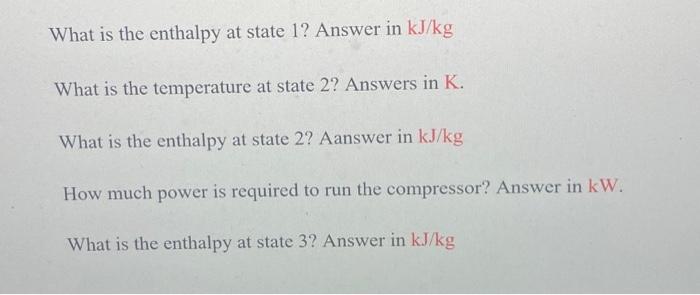

What is the enthalpy at state 1? Answer in kJ/kg What is the temperature at state 2? Answers in K. What is the enthalpy at state 2? Aanswer in kJ/kg How much power is required to run the compressor? Answer in kW. What is the enthalpy at state 3? Answer in kJ/kg
