Water flows through a 2-ft-diameter pipe arranged horizontally in a circular arc as shown in the figure below. If the pi

Post by answerhappygod »

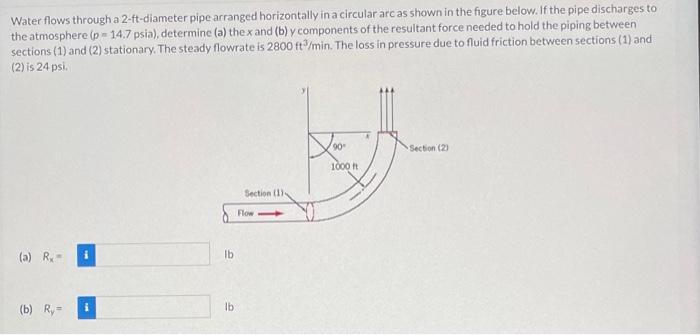

Water Flows Through A 2 Ft Diameter Pipe Arranged Horizontally In A Circular Arc As Shown In The Figure Below If The Pi 1
Water Flows Through A 2 Ft Diameter Pipe Arranged Horizontally In A Circular Arc As Shown In The Figure Below If The Pi 1 (22.18 KiB) Viewed 36 times
Water flows through a 2-ft-diameter pipe arranged horizontally in a circular arc as shown in the figure below. If the pipe discharges to the atmosphere (p = 14.7 psia), determine (a) the x and (b) y components of the resultant force needed to hold the piping between sections (1) and (2) stationary. The steady flowrate is 2800 ft/min. The loss in pressure due to fluid friction between sections (1) and (2) is 24 psi 900 Section (2) 1000 Section (1) Flow (a) RX- Ib (b) RX- Ib
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
