Design a circuit that can shift three-bit vector W=w2wlwo one bit position to the right with the control input S. The ou

Post by answerhappygod »

Design A Circuit That Can Shift Three Bit Vector W W2wlwo One Bit Position To The Right With The Control Input S The Ou 1
Design A Circuit That Can Shift Three Bit Vector W W2wlwo One Bit Position To The Right With The Control Input S The Ou 1 (16.26 KiB) Viewed 40 times

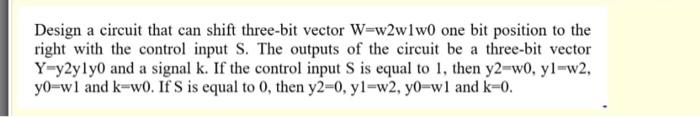

Design a circuit that can shift three-bit vector W=w2wlwo one bit position to the right with the control input S. The outputs of the circuit be a three-bit vector Y=y2ylyo and a signal k. If the control input S is equal to 1, then y2-wo, yl-w2, yo=wl and k-wo. If S is equal to 0, then y2-0, y1=w2, yo-wl and k-0.
