A circuit is constructed using two batteries and three resistors as shown in the figure. The batteries have voltages Va

Post by answerhappygod »

A Circuit Is Constructed Using Two Batteries And Three Resistors As Shown In The Figure The Batteries Have Voltages Va 1
A Circuit Is Constructed Using Two Batteries And Three Resistors As Shown In The Figure The Batteries Have Voltages Va 1 (81.65 KiB) Viewed 20 times

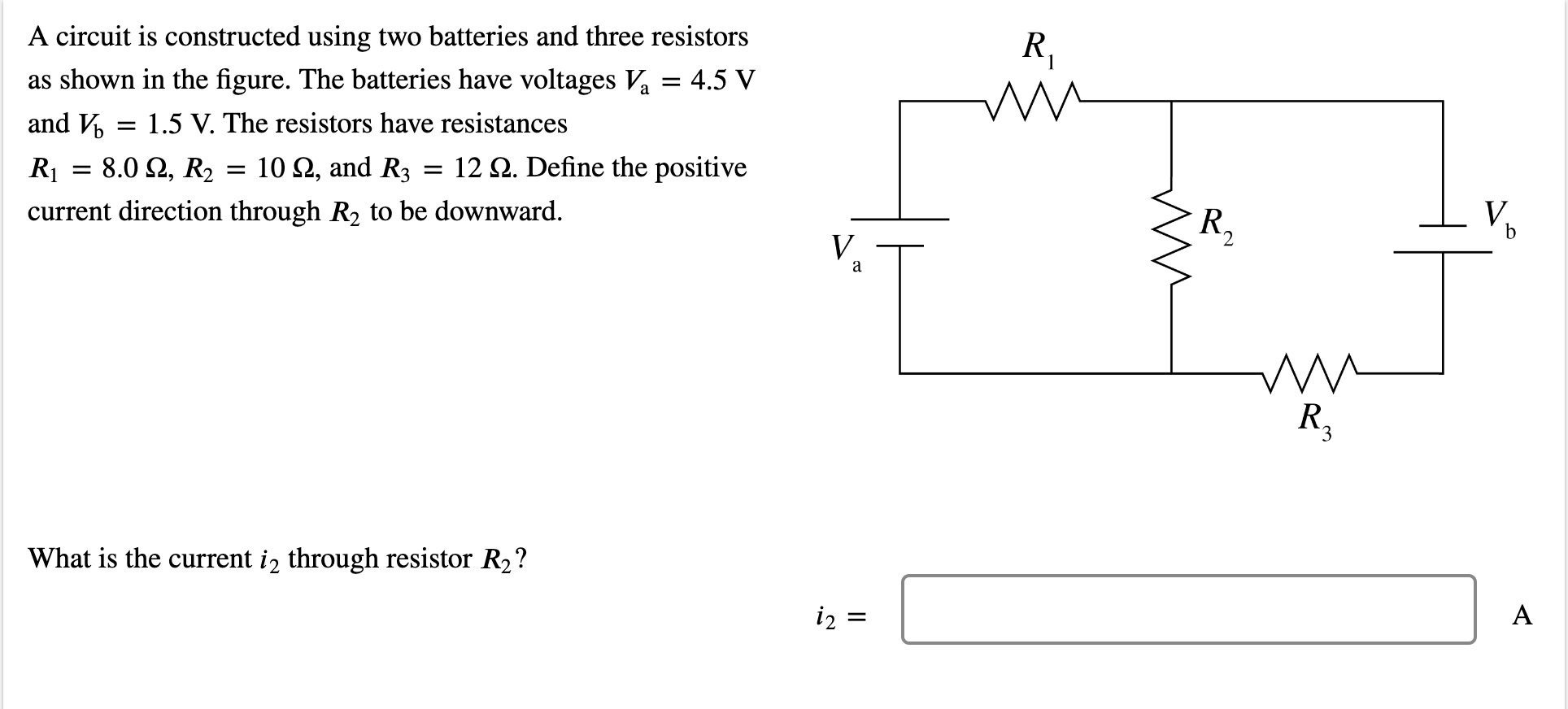

A circuit is constructed using two batteries and three resistors as shown in the figure. The batteries have voltages Va and V₁ = 1.5 V. The resistors have resistances R₁ = 8.0, R₂ = 10, and R3 current direction through R₂ to be downward. = = 4.5 V 12 2. Define the positive What is the current i2 through resistor R₂? V a "I i₂ = R₁ M R₂ mm R3 b A
