9. [0/6.66 Points] DETAILS A waste management company handles large dumpsters of construction debris. The sorting proces

[answerhappygod]

9 0 6 66 Points Details A Waste Management Company Handles Large Dumpsters Of Construction Debris The Sorting Proces 1 (209.48 KiB) Viewed 59 times

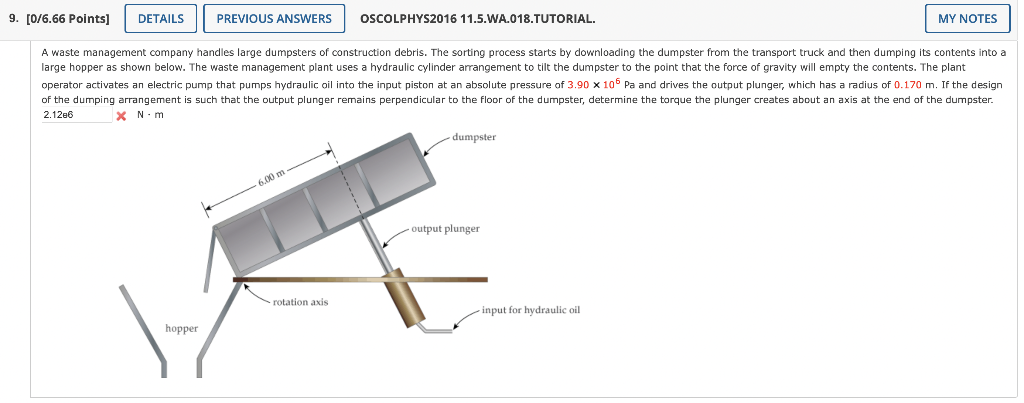

9. [0/6.66 Points] DETAILS A waste management company handles large dumpsters of construction debris. The sorting process starts by downloading the dumpster from the transport truck and then dumping its contents into a large hopper as shown below. The waste management plant uses a hydraulic cylinder arrangement to tilt the dumpster to the point that the force of gravity will empty the contents. The plant operator activates an electric pump that pumps hydraulic oil into the input piston at an absolute pressure of 3.90 x 105 Pa and drives the output plunger, which has a radius of 0.170 m. If the design of the dumping arrangement is such that the output plunger remains perpendicular to the floor of the dumpster, determine the torque the plunger creates about an axis at the end of the dumpster. 2.12e6 X N-m hopper PREVIOUS ANSWERS OSCOLPHYS2016 11.5.WA.018.TUTORIAL. 6.00 m rotation axis dumpster output plunger MY NOTES input for hydraulic oil
