(11%) Problem 6: A yo-yo is made of two uniform disks, each of mass M and radius R, which are glued to a smaller central

[answerhappygod]

11 Problem 6 A Yo Yo Is Made Of Two Uniform Disks Each Of Mass M And Radius R Which Are Glued To A Smaller Central 1 (184.48 KiB) Viewed 47 times

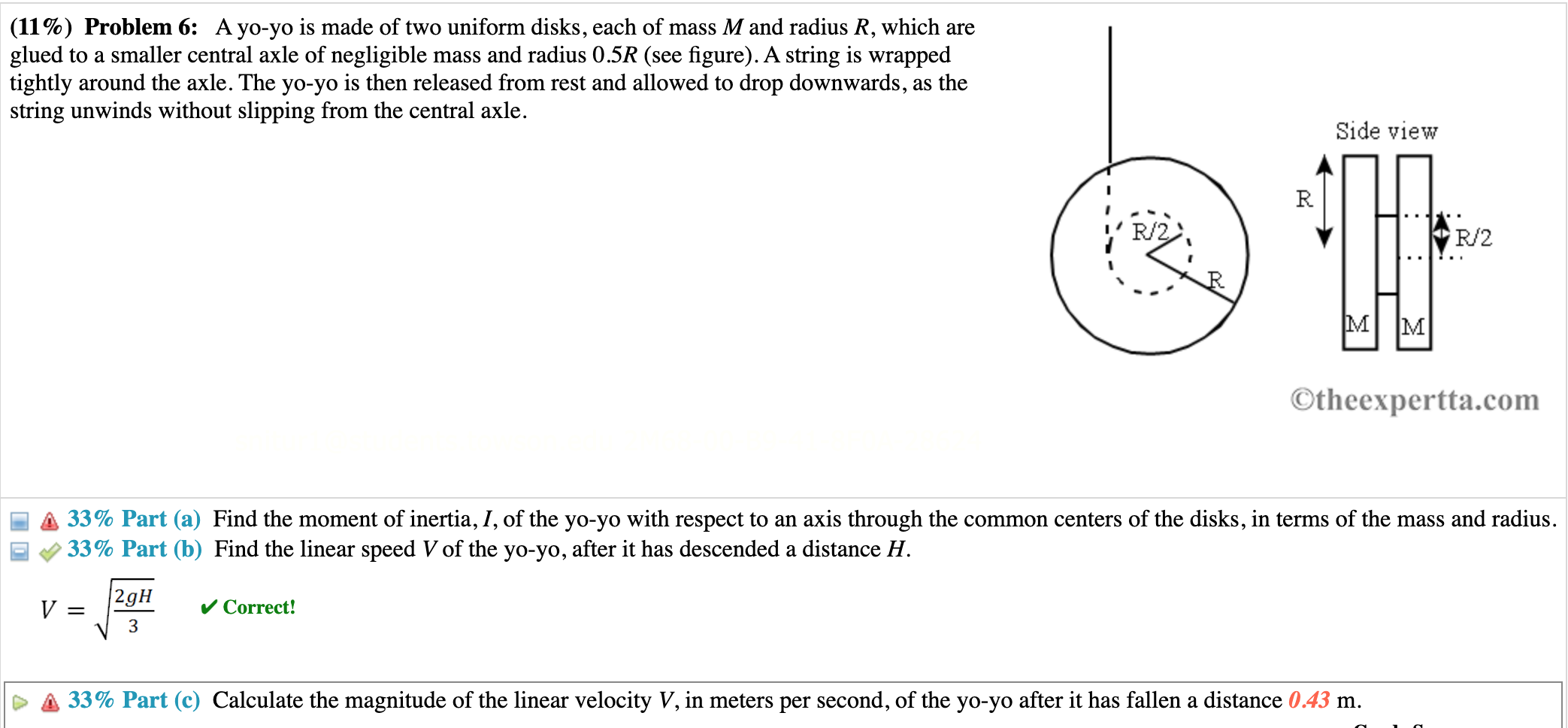

(11%) Problem 6: A yo-yo is made of two uniform disks, each of mass M and radius R, which are glued to a smaller central axle of negligible mass and radius 0.5R (see figure). A string is wrapped tightly around the axle. The yo-yo is then released from rest and allowed to drop downwards, as the string unwinds without slipping from the central axle. V = 2gH 3 1828 R/2 R ✓ Correct! R Side view H M M 33% Part (a) Find the moment of inertia, I, of the yo-yo with respect to an axis through the common centers of the disks, in terms of the mass and radius. 33% Part (b) Find the linear speed V of the yo-yo, after it has descended a distance H. R/2 Otheexpertta.com 33% Part (c) Calculate the magnitude of the linear velocity V, in meters per second, of the yo-yo after it has fallen a distance 0.43 m.
