Problem 5.23 With f = 60,000 psi and f' = 4000 psi, select the reinforcing for T beam AB for the floor system shown. Ass

[answerhappygod]

Problem 5 23 With F 60 000 Psi And F 4000 Psi Select The Reinforcing For T Beam Ab For The Floor System Shown Ass 1 (253.15 KiB) Viewed 35 times

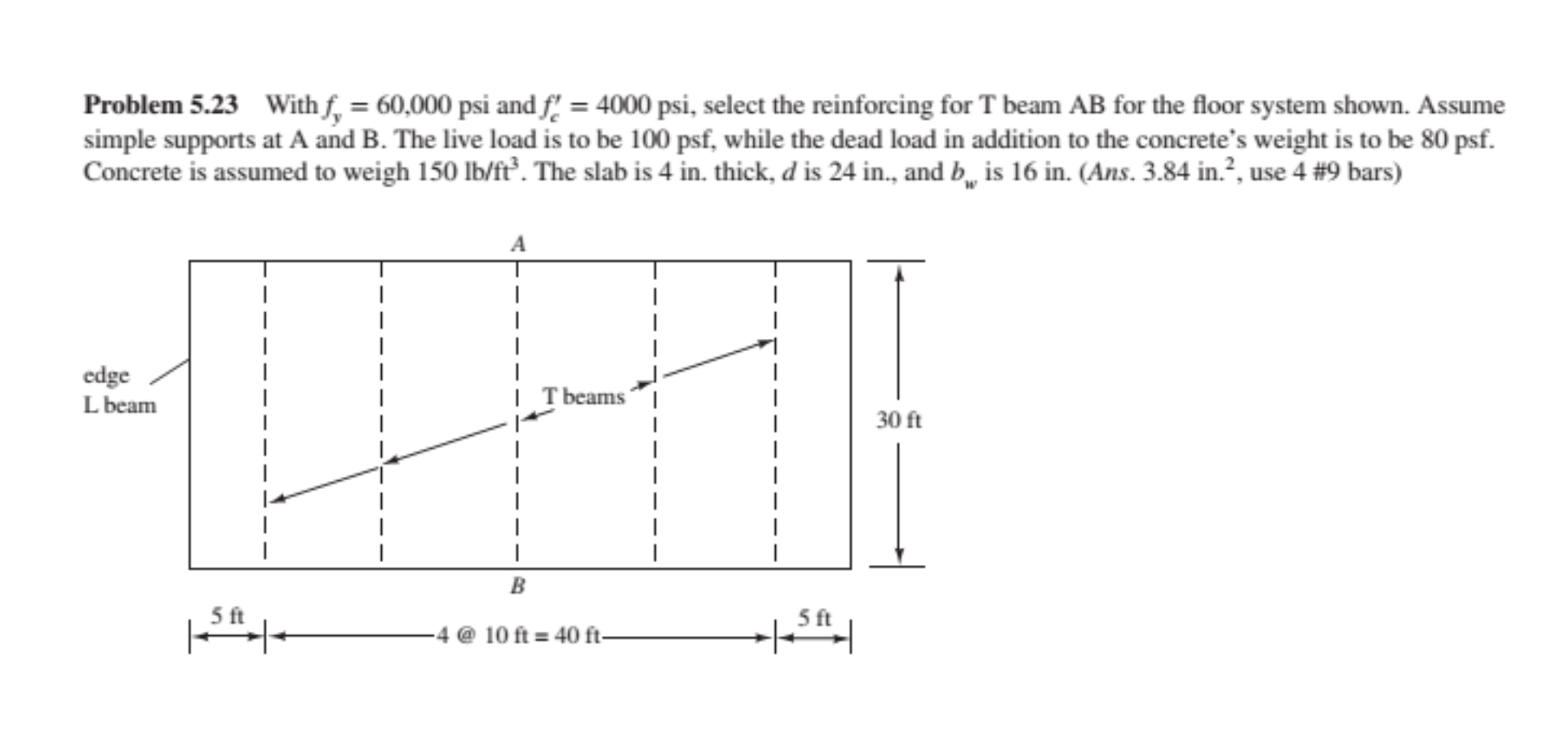

Problem 5.23 With f = 60,000 psi and f' = 4000 psi, select the reinforcing for T beam AB for the floor system shown. Assume simple supports at A and B. The live load is to be 100 psf, while the dead load in addition to the concrete's weight is to be 80 psf. Concrete is assumed to weigh 150 lb/ft?. The slab is 4 in. thick, dis 24 in., and his 16 in. (Ans. 3.84 in.”, use 4 #9 bars) А 1 1 1 1 1 I edge L beam | T beams 30 ft 1 I 1 B 5 ft 1344 5 ft -4 @ 10 ft = 40 ft- +542
