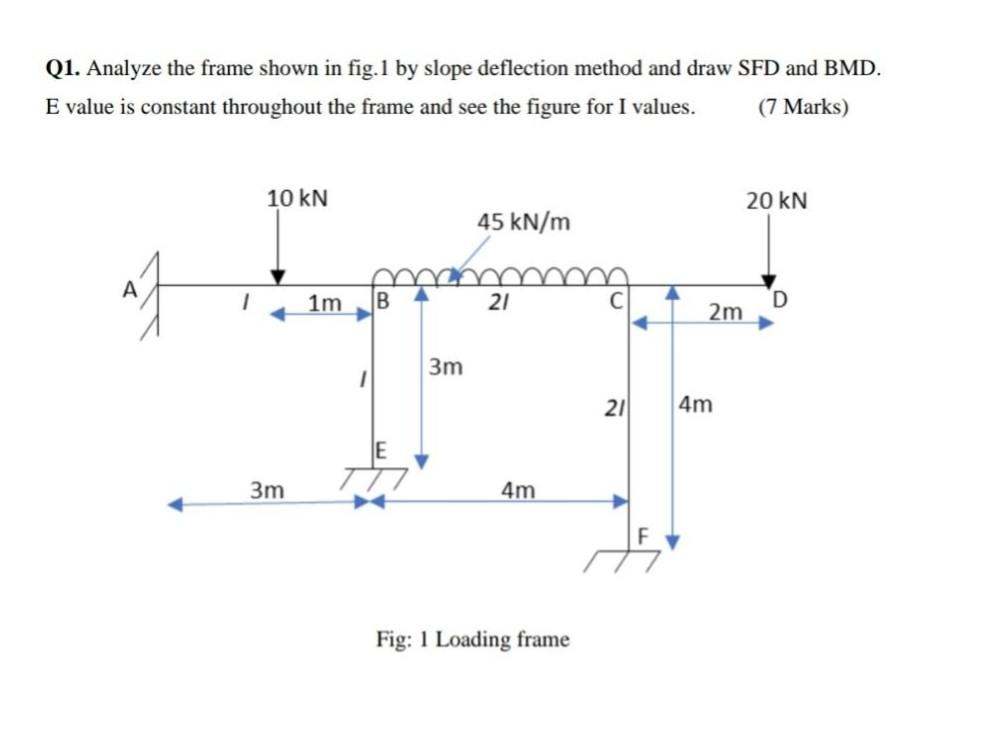

Q1. Analyze the frame shown in fig. 1 by slope deflection method and draw SFD and BMD. E value is constant throughout the frame and see the figure for I values. (7 Marks) 10 KN 20 KN 45 kN/m AJ 1m B 21 С D 2m 3m 1 21 4m 3m 4m Fig: 1 Loading frame
