Q3. Draw BMD and SFD for the overhang beam shown in the figure below. Calculate the position and magnitude of maximum po

Post by answerhappygod »

Q3 Draw Bmd And Sfd For The Overhang Beam Shown In The Figure Below Calculate The Position And Magnitude Of Maximum Po 1
Q3 Draw Bmd And Sfd For The Overhang Beam Shown In The Figure Below Calculate The Position And Magnitude Of Maximum Po 1 (34.77 KiB) Viewed 42 times
Help me

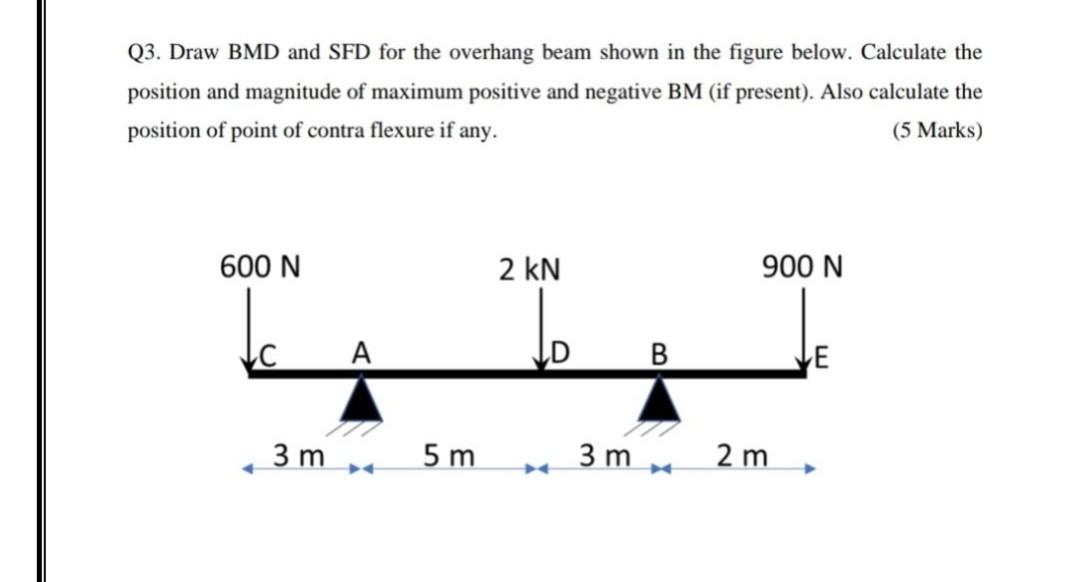

Q3. Draw BMD and SFD for the overhang beam shown in the figure below. Calculate the position and magnitude of maximum positive and negative BM (if present). Also calculate the position of point of contra flexure if any. (5 Marks) 600 N 2 kN 900 N WI A B E 3 m 5 m 3 m 2 m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
