Determine the structure stiffness matrix, joint displacements, member forces and reactions of the truss shown in Figure

[answerhappygod]

Determine The Structure Stiffness Matrix Joint Displacements Member Forces And Reactions Of The Truss Shown In Figure 1 (30.57 KiB) Viewed 41 times

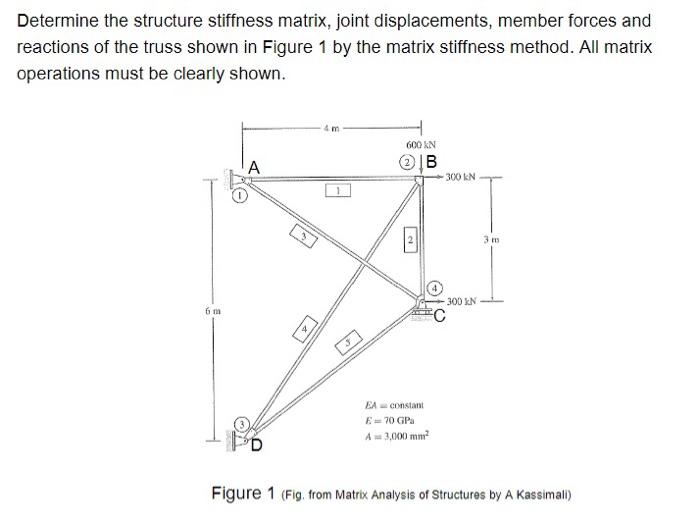

Determine the structure stiffness matrix, joint displacements, member forces and reactions of the truss shown in Figure 1 by the matrix stiffness method. All matrix operations must be clearly shown. 600 KN 2 В A 300 KN 3. 6 300 KN FC * EA constant E=70 GPS A 3,000mm? Figure 1 (Fig. from Matrix Analysis of Structures by A Kassimall)
