22. For the symmetrical section in figure 2 shown below, calculate k B mm X х х 350 mm х х х х 0.8 B mm Figure (2) (1) T
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
22. For the symmetrical section in figure 2 shown below, calculate k B mm X х х 350 mm х х х х 0.8 B mm Figure (2) (1) T

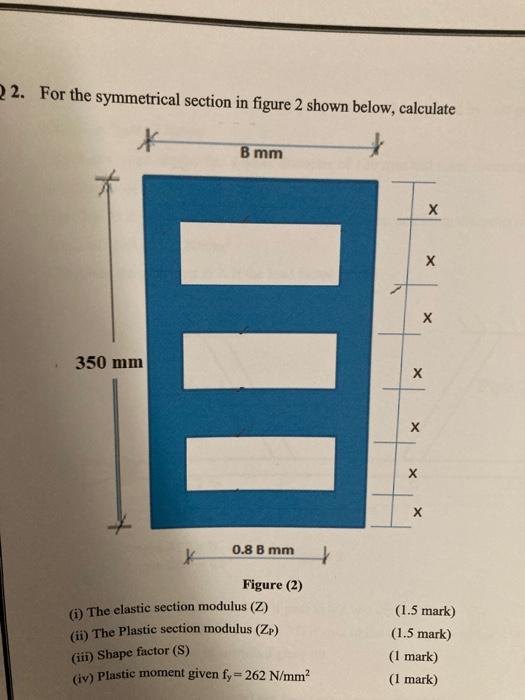

22. For the symmetrical section in figure 2 shown below, calculate k B mm X х х 350 mm х х х х 0.8 B mm Figure (2) (1) The elastic section modulus (2) (ii) The Plastic section modulus (Z) (1.5 mark) (1.5 mark) (1 mark) (1 mark) (iii) Shape factor (S) (iv) Plastic moment given fy = 262 N/mm²
