Please answer the following questions please. Asap. Thankyou.

Post by **answerhappygod** » Wed Mar 30, 2022 9:10 am

: Please Answer The Following Questions Please Asap Thankyou 1 (101.17 KiB) Viewed 57 times

: Please Answer The Following Questions Please Asap Thankyou 2 (104.02 KiB) Viewed 57 times

: Please Answer The Following Questions Please Asap Thankyou 3 (93.68 KiB) Viewed 57 times

: Please Answer The Following Questions Please Asap Thankyou 4 (45.84 KiB) Viewed 57 times

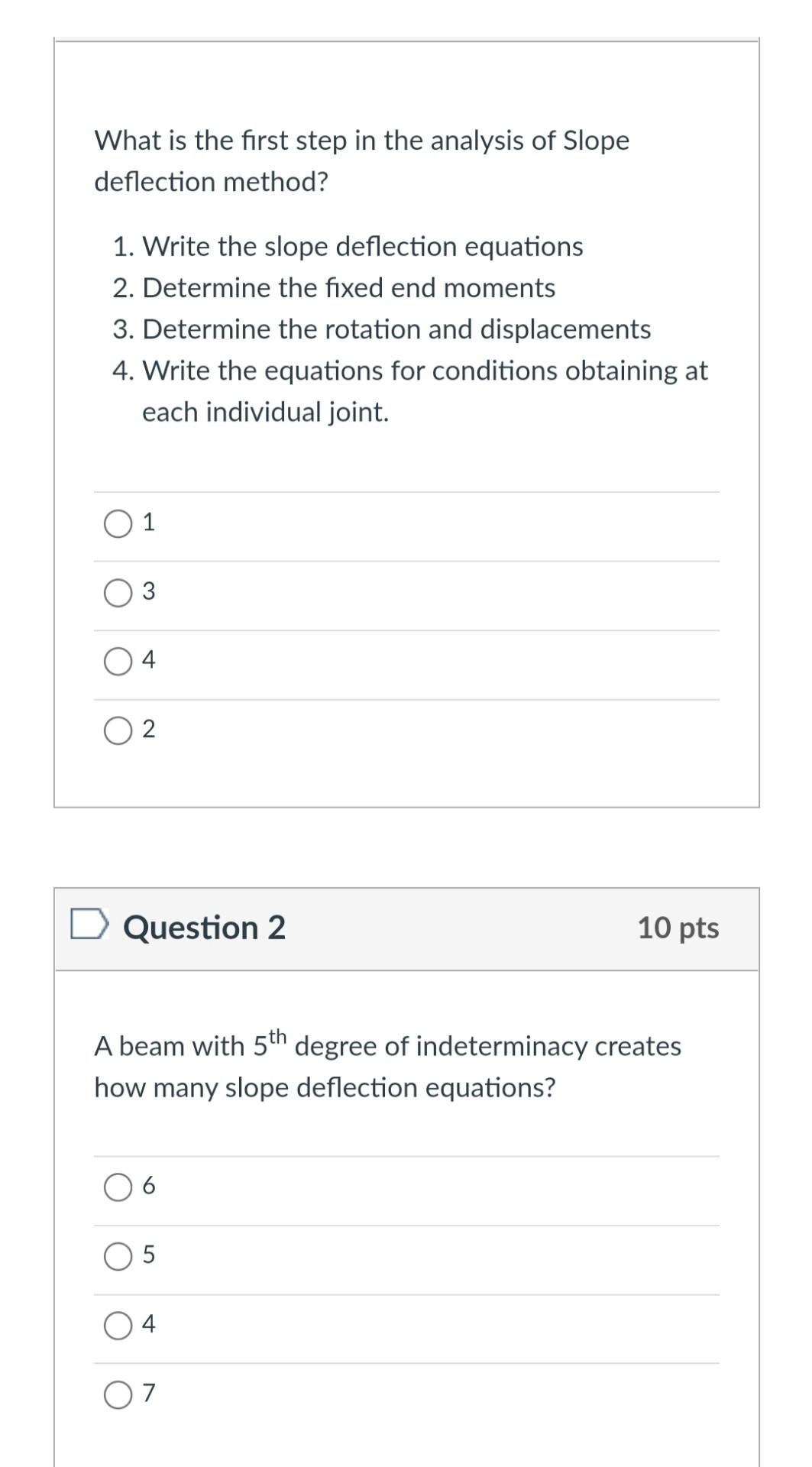

What is the first step in the analysis of Slope deflection method? 1. Write the slope deflection equations 2. Determine the fixed end moments 3. Determine the rotation and displacements 4. Write the equations for conditions obtaining at each individual joint. 1 3 04 02. Question 2 10 pts A beam with 5th degree of indeterminacy creates how many slope deflection equations? 6 5 4 07

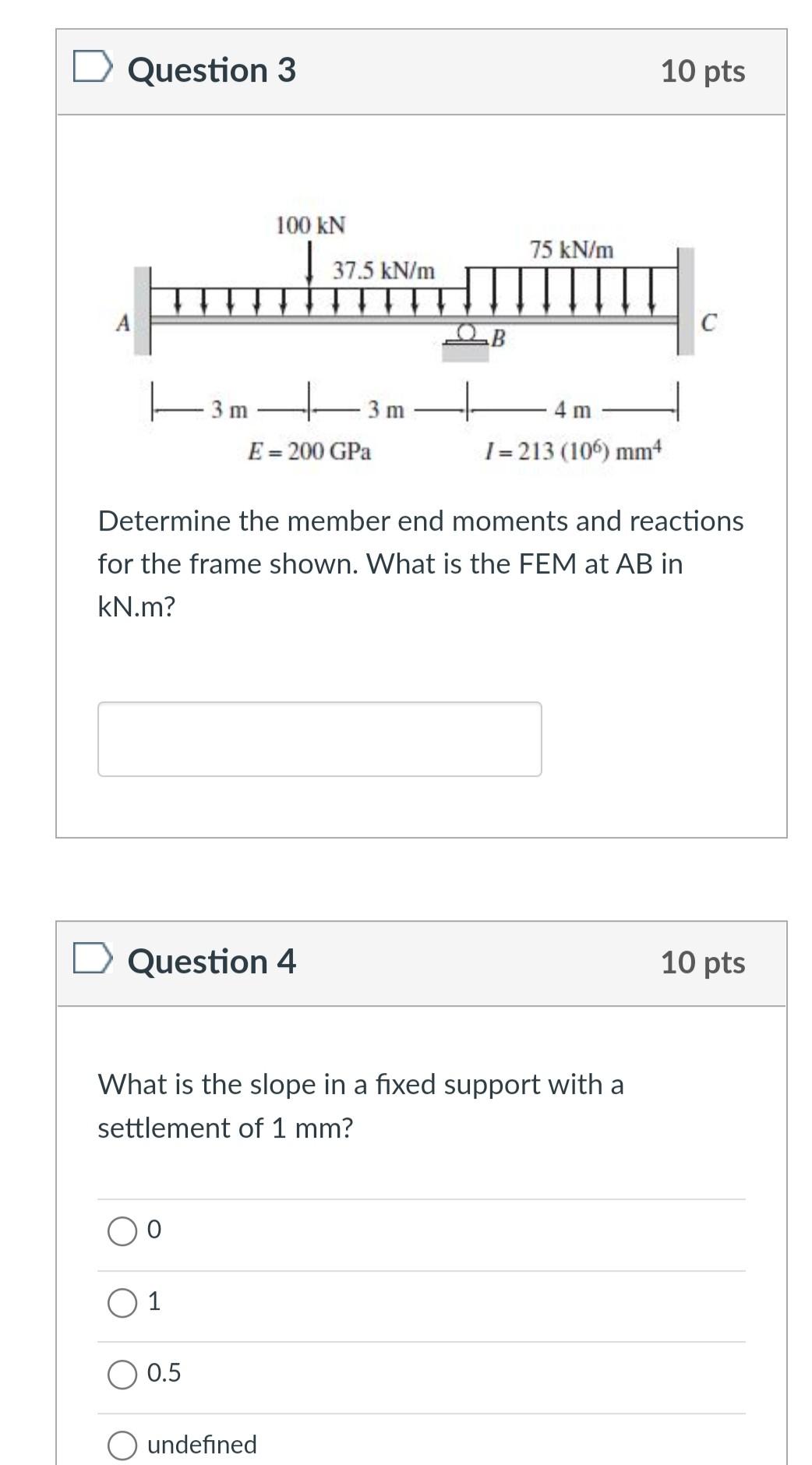

Question 3 10 pts 100 KN 37.5 kN/m 75 kN/m A с LB m - 3m- 3 m 3 m E = 200 GPa I = 213 (106) mm Determine the member end moments and reactions for the frame shown. What is the FEM at AB in kN.m? D Question 4 10 pts What is the slope in a fixed support with a settlement of 1 mm? 0 0 1 0.5 O undefined

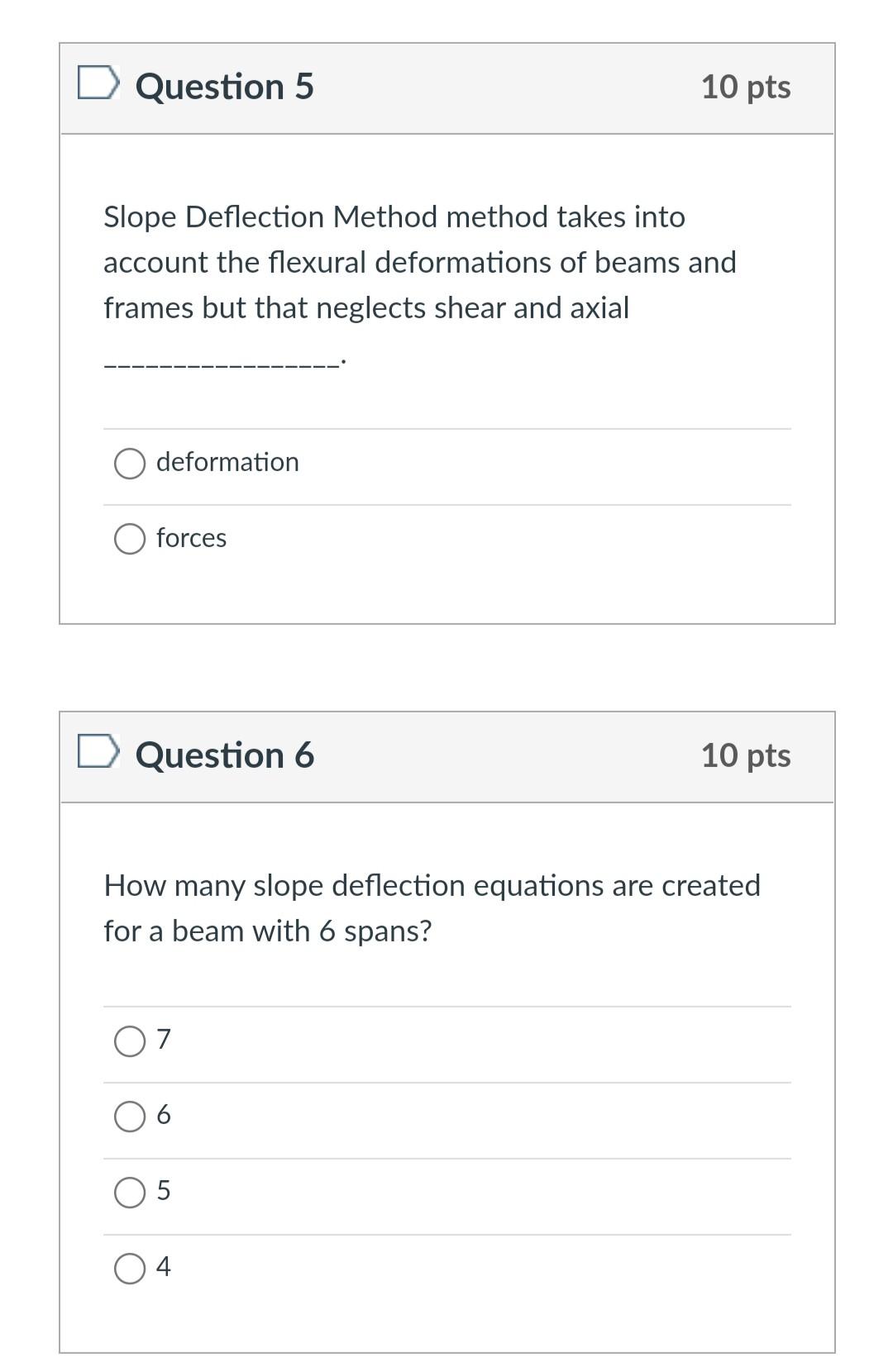

Question 5 10 pts Slope Deflection Method method takes into account the flexural deformations of beams and frames but that neglects shear and axial O deformation forces Question 6 10 pts How many slope deflection equations are created for a beam with 6 spans? 07 6 5 04

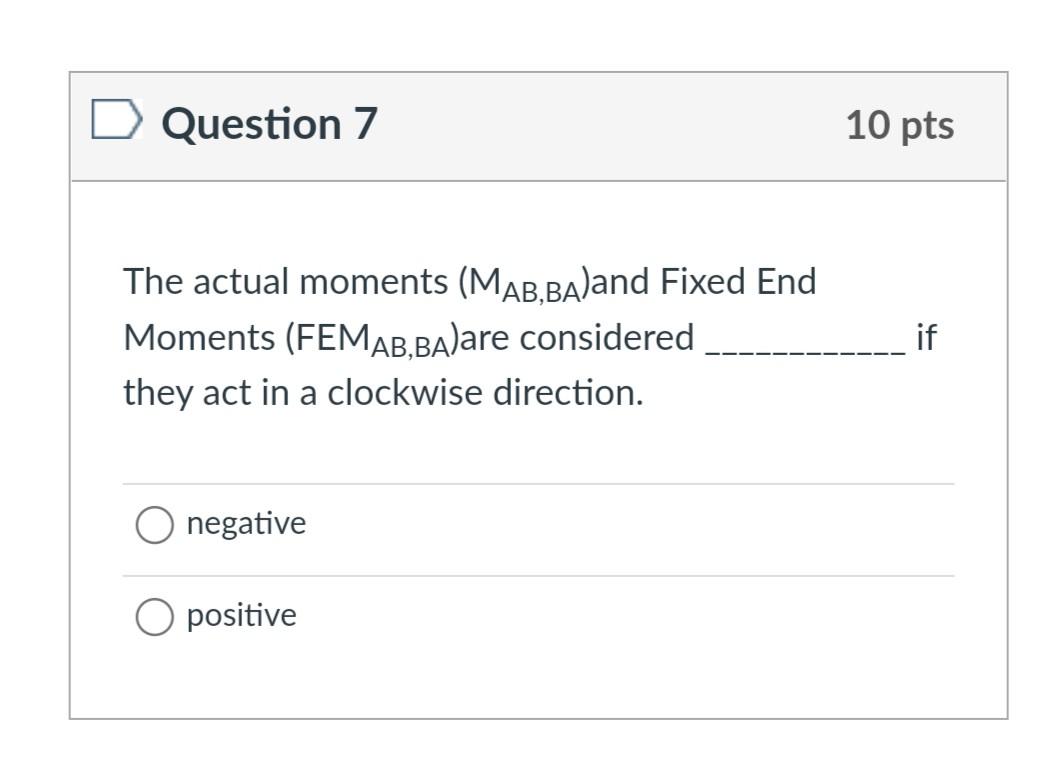

D Question 7 10 pts The actual moments (MAB,BA)and Fixed End Moments (FEMAB,BA)are considered they act in a clockwise direction. if O negative O positive
