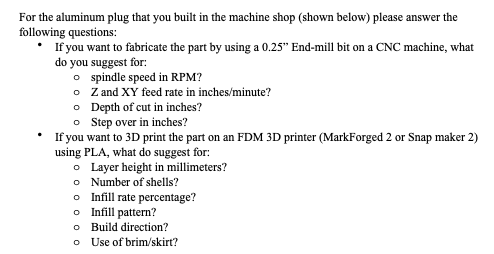

For the aluminum plug that you built in the machine shop (shown below) please answer the following questions: If you want to fabricate the part by using a 0.25" End-mill bit on a CNC machine, what do you suggest for: o spindle speed in RPM? o Z and XY feed rate in inches/minute? o Depth of cut in inches? Step over in inches? o • If you want to 3D print the part on an FDM 3D printer (MarkForged 2 or Snap maker 2) using PLA, what do suggest for: o Layer height in millimeters? o Number of shells? o Infill rate percentage? Infill pattern? o o Build direction? o Use of brim/skirt?

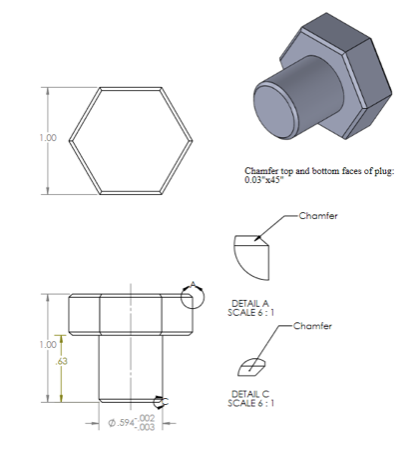

1.00 1.00 .63 002 0.594.003 Chamfer top and bottom faces of plug: 0.03x45 D DETAIL A SCALE 6:1 DETAIL C SCALE 6:1 Chamfer -Chamfer
