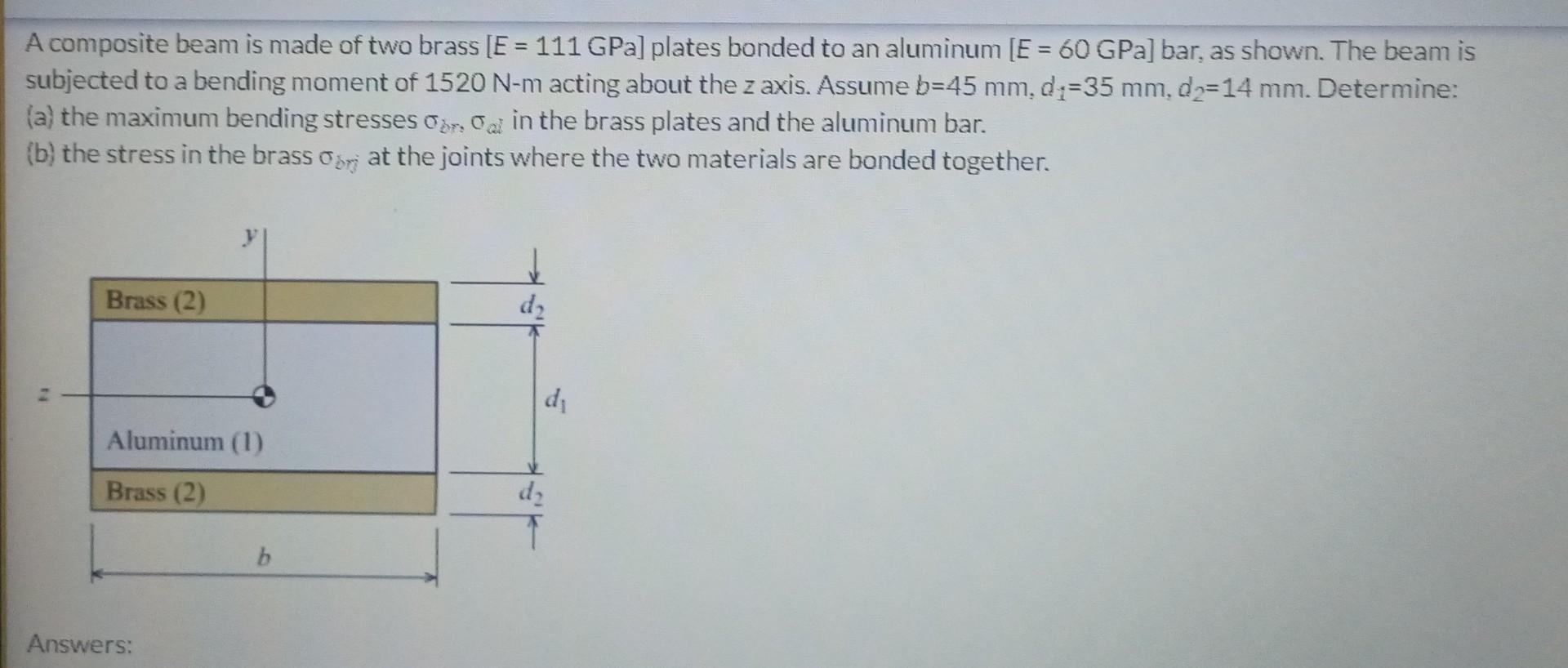

A composite beam is made of two brass [E = 111 GPa] plates bonded to an aluminum [E = 60 GPa] bar, as shown. The beam is subjected to a bending moment of 1520 N-m acting about the z axis. Assume b=45 mm, d1-35 mm, d=14 mm. Determine: (a) the maximum bending stresses Oral in the brass plates and the aluminum bar. (b) the stress in the brass o at the joints where the two materials are bonded together. Brass (2) Aluminum (1) Brass (2) Answers: b d₂ dy

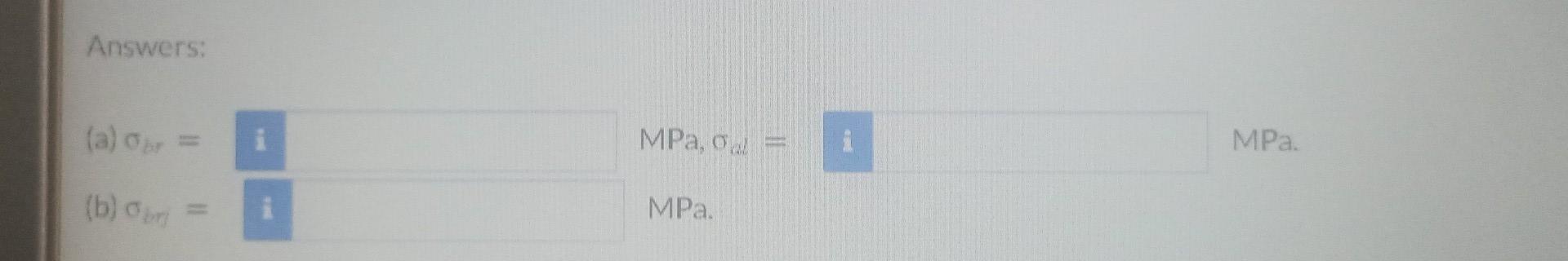

Answers: (a) Obr (b) abri i MPa, gal MPa. MPa.
