Construct the shear-force and bending-moment diagrams and identify the largest negative bending moment. Assume a = 5.2 f

[answerhappygod]

Construct The Shear Force And Bending Moment Diagrams And Identify The Largest Negative Bending Moment Assume A 5 2 F 1 (67.04 KiB) Viewed 23 times

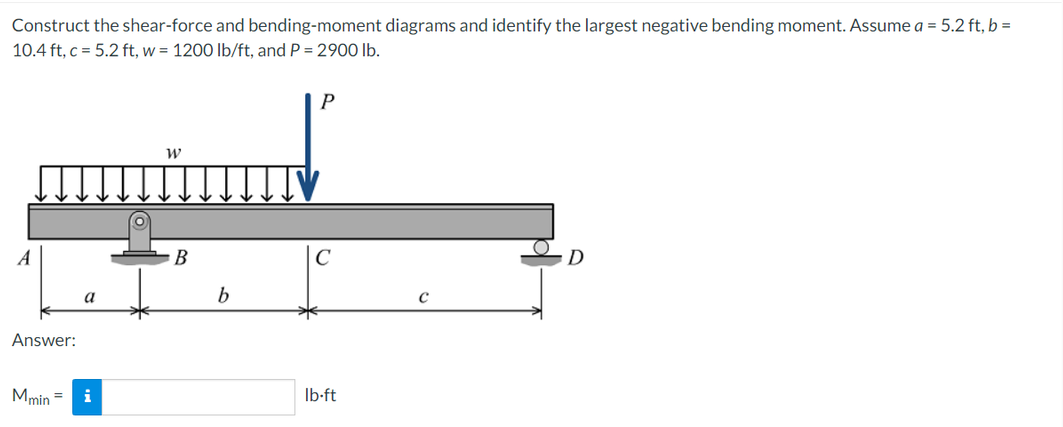

Construct the shear-force and bending-moment diagrams and identify the largest negative bending moment. Assume a = 5.2 ft, b = 10.4 ft, c = 5.2 ft, w = 1200 lb/ft, and P = 2900 lb. Answer: a Mmin = i W B b P lb-ft C D
