A solid 1.06-in.-diameter steel [G= 12,000 ksi] shaft is subjected to the torques shown. Determine the magnitude of the

Post by answerhappygod »

A Solid 1 06 In Diameter Steel G 12 000 Ksi Shaft Is Subjected To The Torques Shown Determine The Magnitude Of The 1
A Solid 1 06 In Diameter Steel G 12 000 Ksi Shaft Is Subjected To The Torques Shown Determine The Magnitude Of The 1 (124.38 KiB) Viewed 29 times

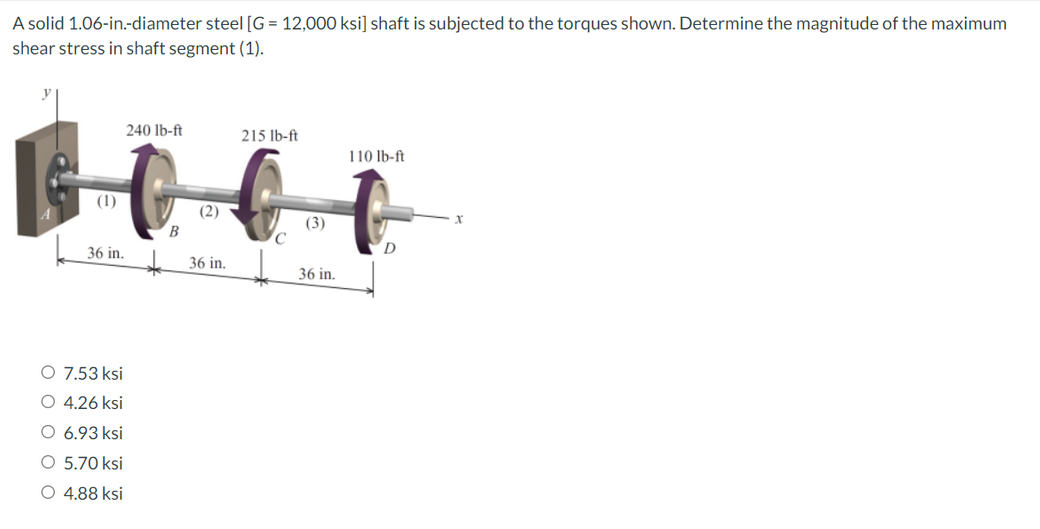

A solid 1.06-in.-diameter steel [G= 12,000 ksi] shaft is subjected to the torques shown. Determine the magnitude of the maximum shear stress in shaft segment (1). 240 lb-ft 215 lb-ft Feet (2) B 36 in. (1) 36 in. O 7.53 ksi 4.26 ksi EE 6.93 ksi O 5.70 ksi 4.88 ksi (3) 36 in. 110 lb-ft D
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
