A composite beam is made of two brass [E = 102 GPa) plates bonded to an aluminum (E = 68 GPa) bar, as shown. Find the mo

Post by answerhappygod »

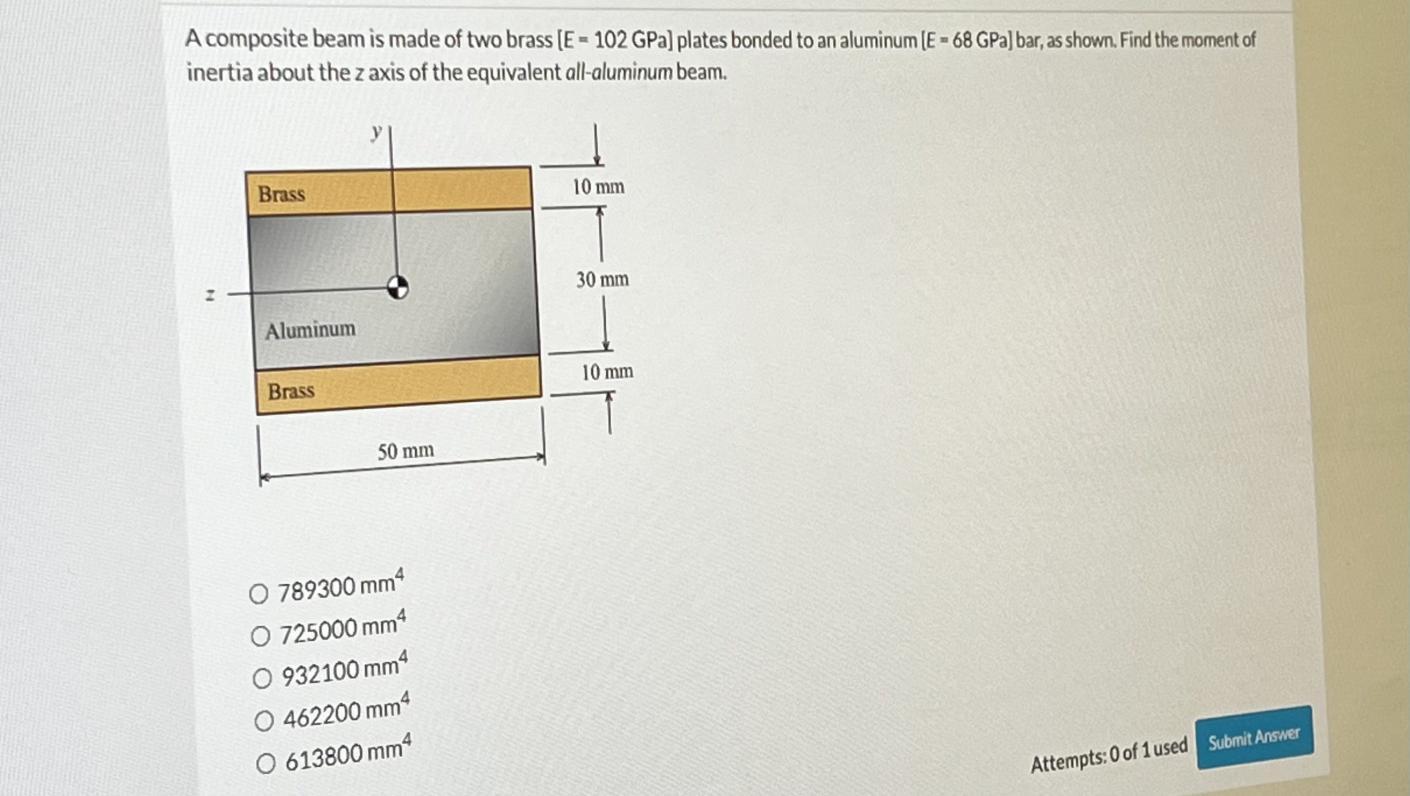

A Composite Beam Is Made Of Two Brass E 102 Gpa Plates Bonded To An Aluminum E 68 Gpa Bar As Shown Find The Mo 1
A Composite Beam Is Made Of Two Brass E 102 Gpa Plates Bonded To An Aluminum E 68 Gpa Bar As Shown Find The Mo 1 (108.94 KiB) Viewed 74 times
A composite beam is made of two brass [E = 102 GPa) plates bonded to an aluminum (E = 68 GPa) bar, as shown. Find the moment of inertia about the z axis of the equivalent all-aluminum beam. Brass Aluminum Brass 50 mm O 789300 mm4 O 725000 mm4 O 932100 mm4 O 462200 mm4 O 613800 mm4 10 mm 30 mm 10 mm Attempts: 0 of 1 used Submit Answer
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
