2. 4,5 m Make use of the slope deflection method to determine the moments at each joint of the frame shown. The moment o

Post by answerhappygod »

2 4 5 M Make Use Of The Slope Deflection Method To Determine The Moments At Each Joint Of The Frame Shown The Moment O 1
2 4 5 M Make Use Of The Slope Deflection Method To Determine The Moments At Each Joint Of The Frame Shown The Moment O 1 (25.08 KiB) Viewed 34 times

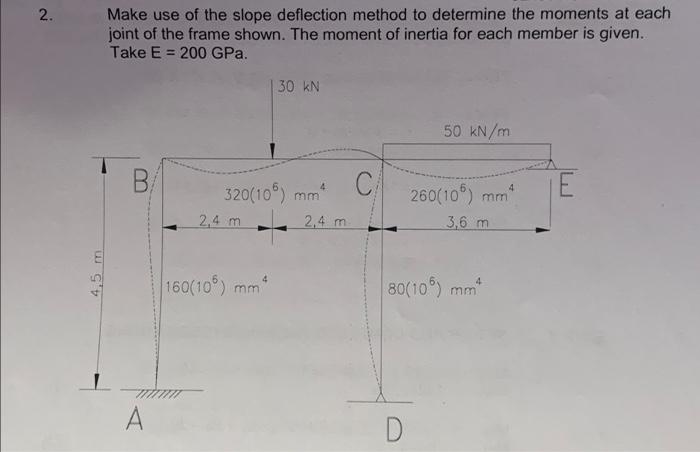

2. 4,5 m Make use of the slope deflection method to determine the moments at each joint of the frame shown. The moment of inertia for each member is given. Take E= 200 GPa. B A 320(106) 2,4 m | 30 kN 160(106) mm 4 mm 2,4 m. C 50 kN/m D 4 260(106) mm² 3,6 m 80(10) mm²
