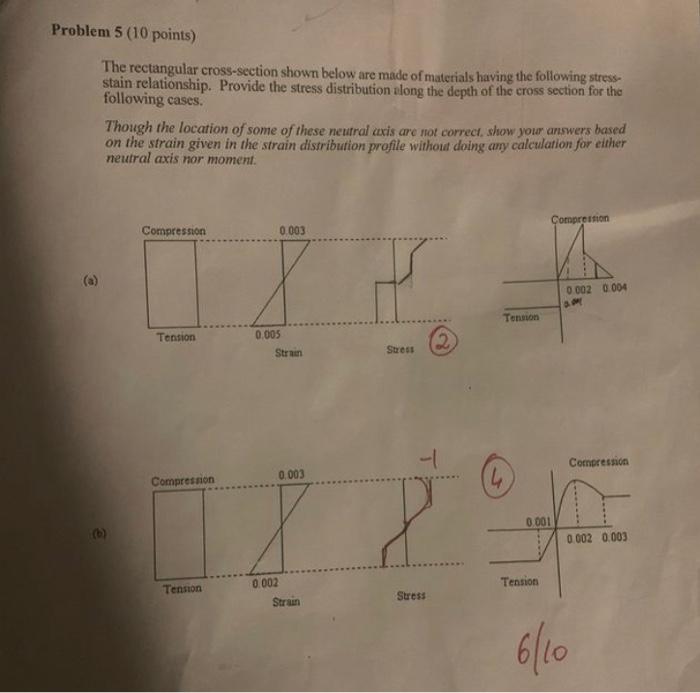

Problem 5 (10 points) The rectangular cross-section shown below are made of materials having the following stress- stain

[answerhappygod]

Problem 5 10 Points The Rectangular Cross Section Shown Below Are Made Of Materials Having The Following Stress Stain 1 (36.18 KiB) Viewed 29 times

Problem 5 (10 points) The rectangular cross-section shown below are made of materials having the following stress- stain relationship. Provide the stress distribution along the depth of the cross section for the following cases. Though the location of some of these neutral axis are not correct, show your answers based on the strain given in the strain distribution profile without doing any calculation for either neutral axis nor moment. Compression Tension Compression Tension 0.003 0.005 Strain 0.003 0.002 Strain Stress 4 Z Stress Tension 4 0.001 Tension Compression 0.002 0.004 2.09 Compression 0.002 0.003 6/10
