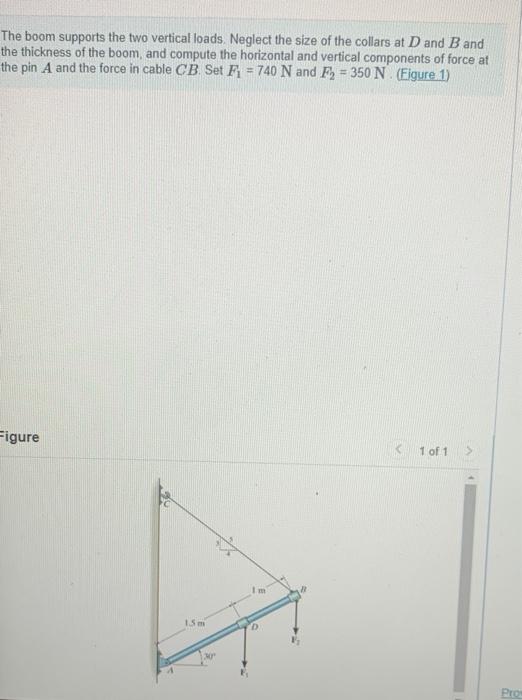

The boom supports the two vertical loads. Neglect the size of the collars at D and B and the thickness of the boom, and compute the horizontal and vertical components of force at the pin A and the force in cable CB. Set F₁ = 740 N and F₂ = 350 N. (Eigure 1) Figure 1.5 m 30 Im < 1 of 1 Pros

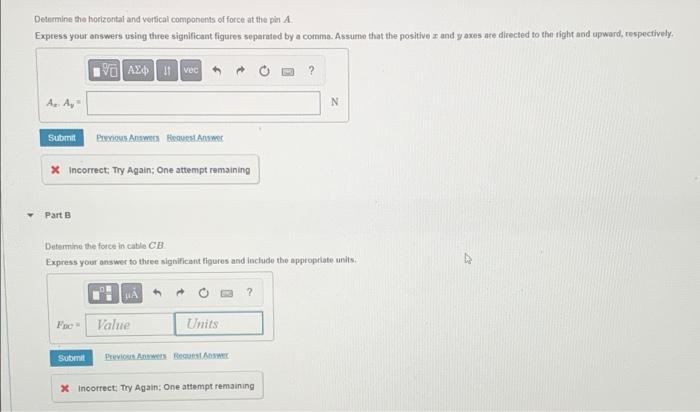

Determine the horizontal and vertical components of force at the pin A Express your answers using three significant figures separated by a comma. Assume that the positive z and y axes are directed to the right and upward, respectively. 15. ΑΣΦ. 114 voc Az. Ay Submit x Incorrect: Try Again; One attempt remaining Part B Previous Answers Request Answer Foo Value Submit Determine the force in cable CB Express your answer to three significant figures and include the appropriate units. HA Units Previous Answers Request Answ ? X Incorrect: Try Again; One attempt remaining N
