5) Determine the required vertical and horizontal resisting forces and line of actions, as well as the resisting moment

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

5) Determine the required vertical and horizontal resisting forces and line of actions, as well as the resisting moment

Post by answerhappygod »

5 Determine The Required Vertical And Horizontal Resisting Forces And Line Of Actions As Well As The Resisting Moment 1
5 Determine The Required Vertical And Horizontal Resisting Forces And Line Of Actions As Well As The Resisting Moment 1 (25.41 KiB) Viewed 19 times

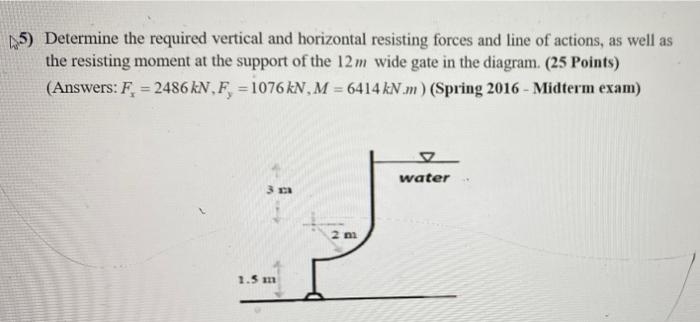

5) Determine the required vertical and horizontal resisting forces and line of actions, as well as the resisting moment at the support of the 12m wide gate in the diagram. (25 Points) (Answers: F = 2486 kN, F, = 1076 kN, M = 6414 kNm) (Spring 2016 - Midterm exam) 3 ma 1.5 m 2 m water
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
