Question 2 (15 marks) The column in Figure 1 is 7 m long and is effectively held in position at both ends but only restr

Post by answerhappygod »

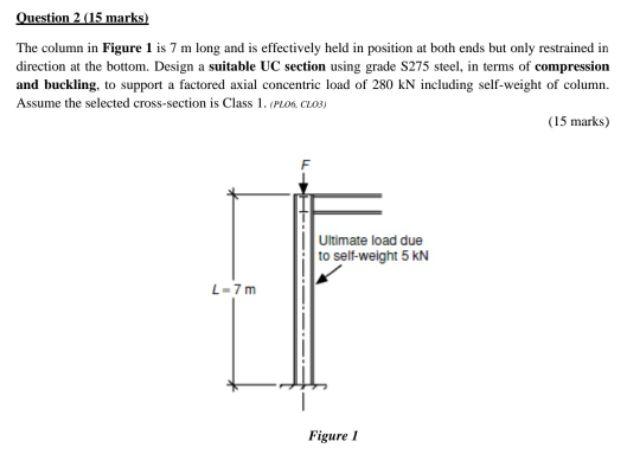

Question 2 15 Marks The Column In Figure 1 Is 7 M Long And Is Effectively Held In Position At Both Ends But Only Restr 1
Question 2 15 Marks The Column In Figure 1 Is 7 M Long And Is Effectively Held In Position At Both Ends But Only Restr 1 (23.58 KiB) Viewed 23 times
Question 2 (15 marks) The column in Figure 1 is 7 m long and is effectively held in position at both ends but only restrained in direction at the bottom. Design a suitable UC section using grade S275 steel, in terms of compression and buckling, to support a factored axial concentric load of 280 kN including self-weight of column. Assume the selected cross-section is Class 1. (PLOS. CLO3) (15 marks) L-7m Ultimate load due to self-weight 5 KN Figure 1
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
