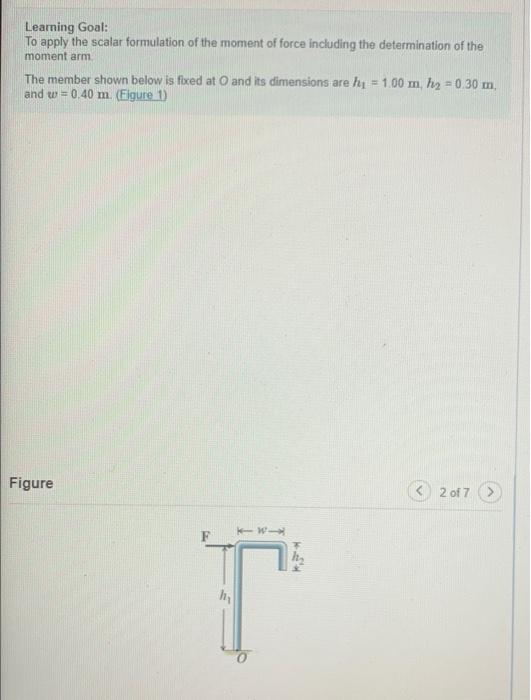

Learning Goal: To apply the scalar formulation of the moment of force including the determination of the moment arm The member shown below is fixed at O and its dimensions are h₁ = 1.00 m, h₂ = 0.30 m, and w=0.40 m. (Figure 1) Figure TEI T 2 of 7

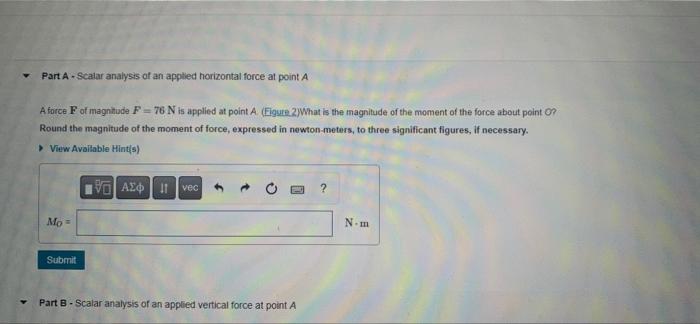

Part A - Scalar analysis of an applied horizontal force at point A A force F of magnitude F = 76 N is applied at point A (Figure 2)What is the magnitude of the moment of the force about point O? Round the magnitude of the moment of force, expressed in newton-meters, to three significant figures, if necessary. > View Available Hint(s) 195] ΑΣΦ Mo Submit Ivec Part B - Scalar analysis of an applied vertical force at point A ? N-m

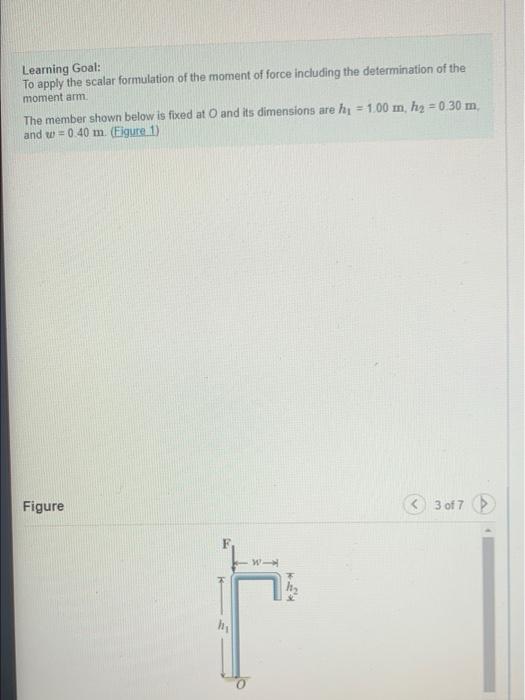

Learning Goal: To apply the scalar formulation of the moment of force including the determination of the moment arm. The member shown below is fixed at O and its dimensions are h₁ = 1.00 m, h₂ = 0.30 m, and w=0.40 m. (Figure 1) Figure W- ** 3 of 7

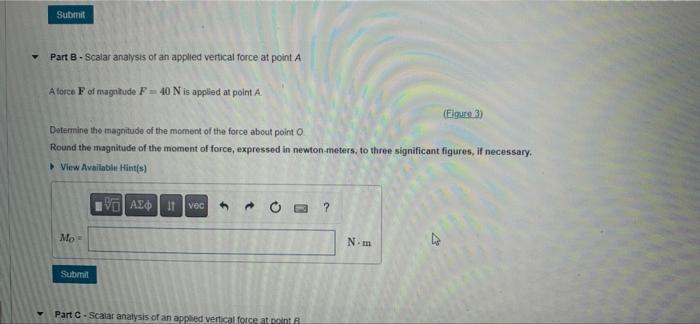

Submit ▾ Part B - Scalar analysis of an applied vertical force at point A A force F of magnitude F= 40 N is applied at point A Determine the magnitude of the moment of the force about point O Round the magnitude of the moment of force, expressed in newton-meters, to three significant figures, if necessary. View Available Hint(s) Mo Submit VAE Ivec Part C-Scalar analysis of an applied vertical force at point R a (Eigure 3) N-m

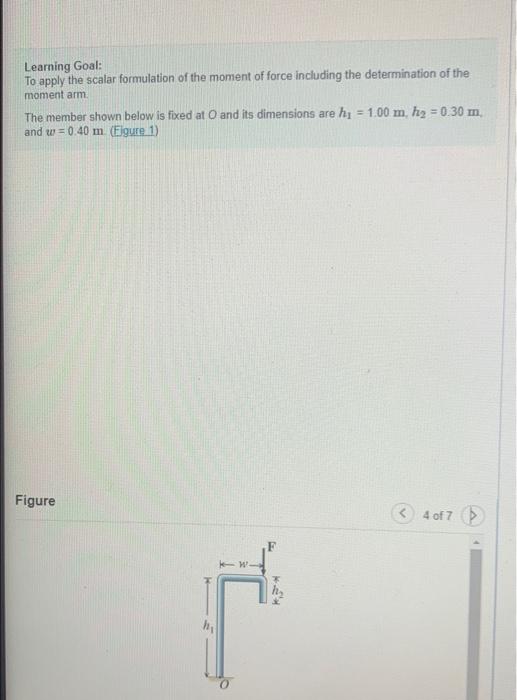

Learning Goal: To apply the scalar formulation of the moment of force including the determination of the moment arm. The member shown below is fixed at O and its dimensions are h₁ = 1.00 m, h₂ = 0.30 m. and w=0.40 m. (Eigure 1) Figure h₁ ** 4 of 7

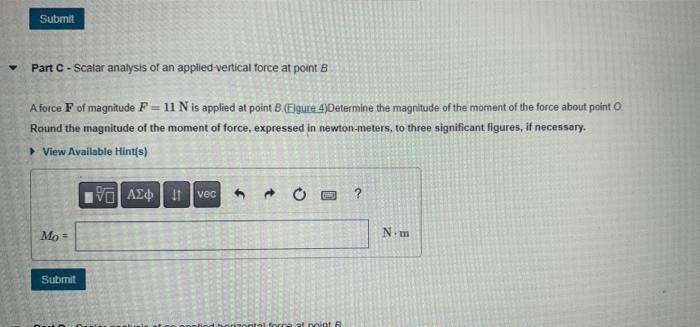

Submit ▾ Part C-Scalar analysis of an applied-vertical force at point B A force F of magnitude F = 11 N is applied at point B. (Figure 4)Determine the magnitude of the moment of the force about point O Round the magnitude of the moment of force, expressed in newton-meters, to three significant figures, if necessary. ▸ View Available Hint(s) Mo Submit 175) ΑΣΦ | I vec 4 orce at point R ? N-m

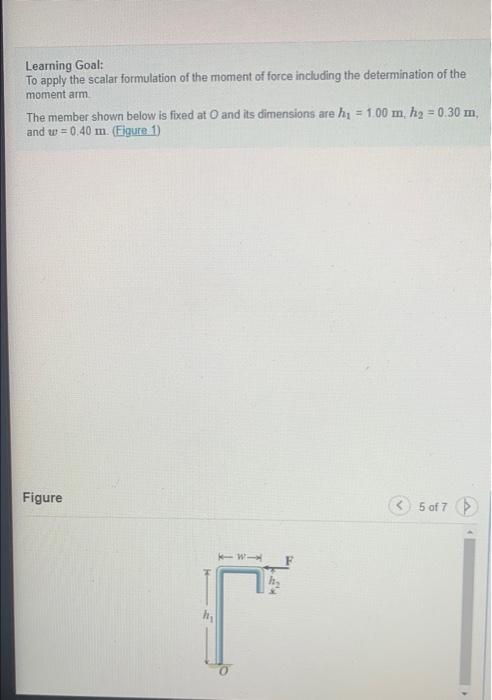

Learning Goal: To apply the scalar formulation of the moment of force including the determination of the moment arm The member shown below is fixed at O and its dimensions are h₁ = 1.00 m, h₂ = 0.30 m, and w=0.40 m. (Figure 1) Figure 5 of 7
Submit Part D-Scalar analysis of an applied horizontal force at point El A force F of magnitude F-93 N is applied at point 8 (Eigure 5)Determine the magnitude of the moment of the force about point O Round the magnitude of the moment of force, expressed in newton-meters, to three significant figures, if necessary. ▸ View Available Hint(s) Mo= Submit VAE Ivec 4 C? Part E-Scalar analysis of an applied horizontal force at point C N-m

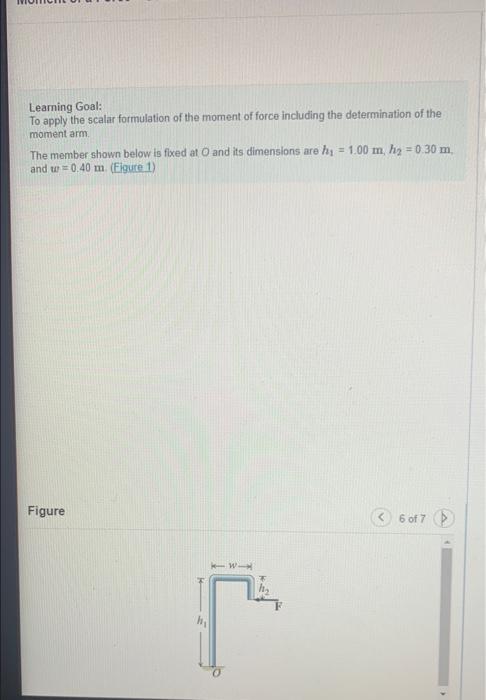

Learning Goal: To apply the scalar formulation of the moment of force including the determination of the moment arm. The member shown below is fixed at O and its dimensions are h₁ = 1.00 m, h₂ = 0.30 m. and w=0.40 m. (Figure 1) Figure W- 6 of 7

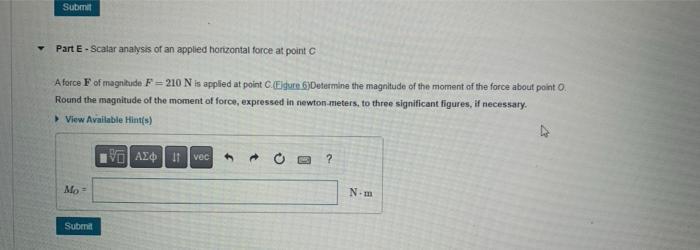

Submit Part E-Scalar analysis of an applied horizontal force at point C A force F of magnitude F= 210 N is applied at point C. (Eigure 6)Determine the magnitude of the moment of the force about point O Round the magnitude of the moment of force, expressed in newton-meters, to three significant figures, if necessary. > View Available Hint(s) Mo Submit 15. ΑΣΦ | 11 vec 4 ? N-m

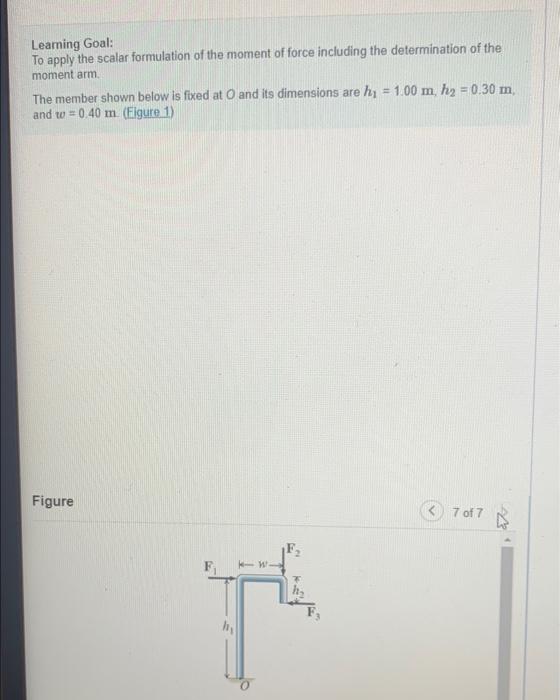

Learning Goal: To apply the scalar formulation of the moment of force including the determination of the moment arm. The member shown below is fixed at O and its dimensions are h₁ = 1.00 m, h₂ = 0.30 m, and w=0.40 m. (Figure 1) Figure T 7 of 7

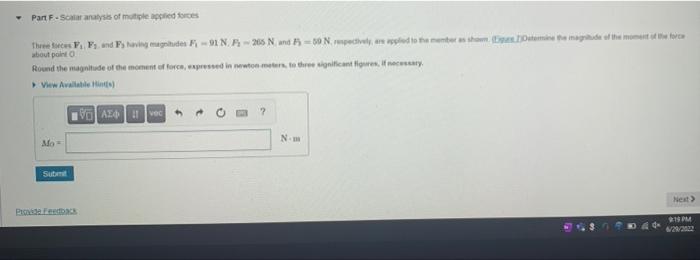

Part F-Scalar analysis of multiple applied forces Three forces F₁, F. and Fs having magnitudes F-91 N. F-265 N and F-50 N, respectively, are applied to the member as shown (Eges Ostemine the magnitude of the moment of the force about point O Round the magnitude of the moment of force, expressed in newton meters, to three significant figures, if necessary. View Available Hints) Mo Submit Provide feedbac VAZ vec 4 ? N-m Next > 9:19 PM
