Given floor plan as shown in Figure 3(b), the architect has requested to check if the column size at Grid B-2 would be s

[answerhappygod]

Given Floor Plan As Shown In Figure 3 B The Architect Has Requested To Check If The Column Size At Grid B 2 Would Be S 1 (124.48 KiB) Viewed 27 times

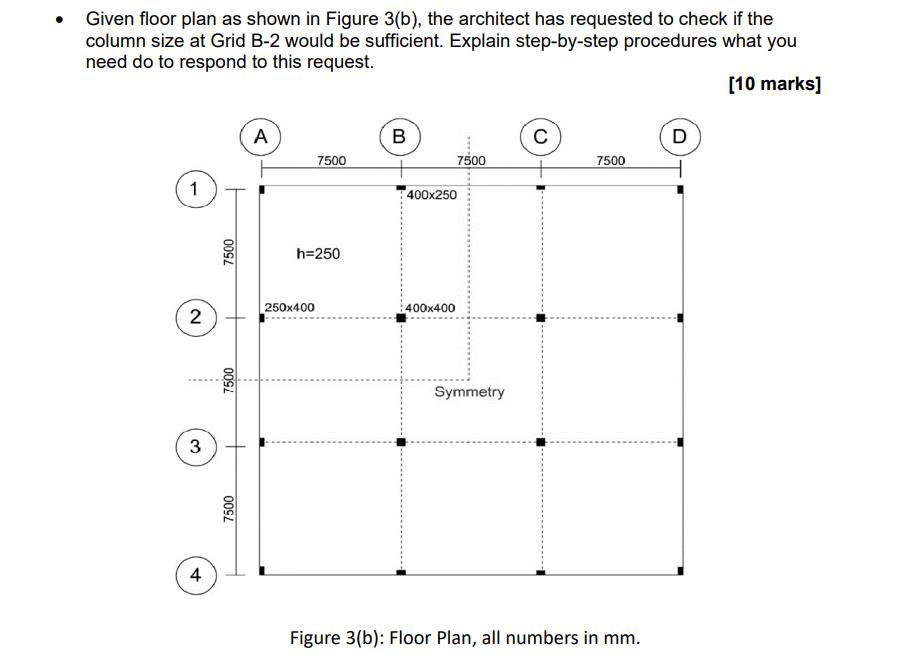

Given floor plan as shown in Figure 3(b), the architect has requested to check if the column size at Grid B-2 would be sufficient. Explain step-by-step procedures what you need do to respond to this request. [10 marks] 1 2 3 4 7500 7500 7500 A 7500 h=250 250x400 B 7500 400x250 400x400 Symmetry C 7500 Figure 3(b): Floor Plan, all numbers in mm. D
