The bulk head AD is subjected to both water and soil-backfill pressures. The bulk head has a mass of 550 kg. Suppose tha

[answerhappygod]

The Bulk Head Ad Is Subjected To Both Water And Soil Backfill Pressures The Bulk Head Has A Mass Of 550 Kg Suppose Tha 1 (105.52 KiB) Viewed 39 times

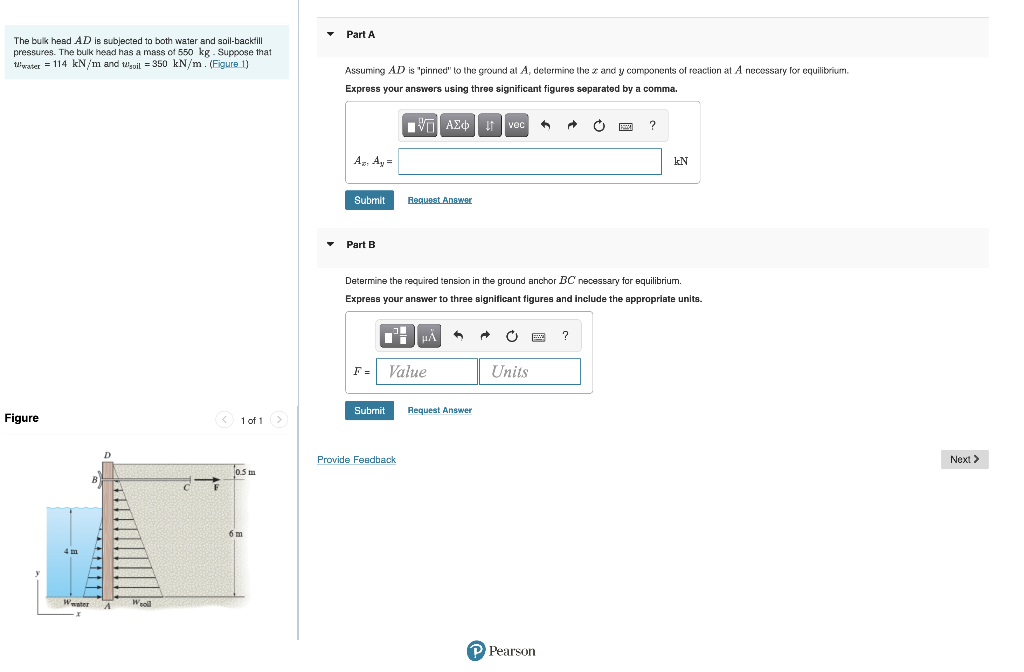

The bulk head AD is subjected to both water and soil-backfill pressures. The bulk head has a mass of 550 kg. Suppose that Wwater = 114 kN/m and oil = 350 kN/m. (Figure 1) Figure Wwater 1 of 1 > 0.5 m 6 m ▾ Part A Assuming AD is "pinned" to the ground at A, determine the and y components of reaction at A necessary for equilibrium. Express your answers using three significant figures separated by a comma. IVΠ ΑΣΦ | L Ag, Ay= Submit ▾ Part B F = Submit Request Answer Determine the required tension in the ground anchor BC necessary for equilibrium. Express your answer to three significant figures and include the appropriate units. Value Provide Feedback A Request Answer c Units P Pearson o ? ? kN Next >
