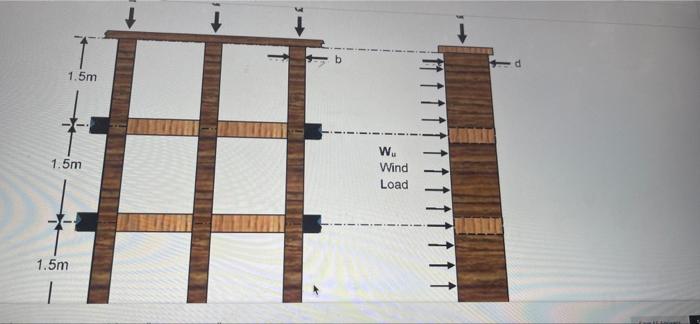

STION 3 35 pens Part of the wall frame system used in the construction of school classrooms is shown in Figure 3A. The system shows internal wall studs and noggings Structural cladding which is not shown in the Mustration, is nailed on both sides of the frame. The wall studs are of grade MGP12 and have a cross-section of 190x35mm The school is to be built in Forbes, New South Wales using seasoned Radiata Pine (Australia). The wall studs are 4.5m high and have intermediate restraints, only in the direction shown in Figure 34 As part of the combined action check for the wall studs, ONLY determine the following Nace and b. Nacy Note: G-permanent load from roof, Qeimposed load from roof during construction and Wwind load (other than wind action reversal) G G
T 1.5m 1.5m 1.5m W₁ Wind Load 1d
