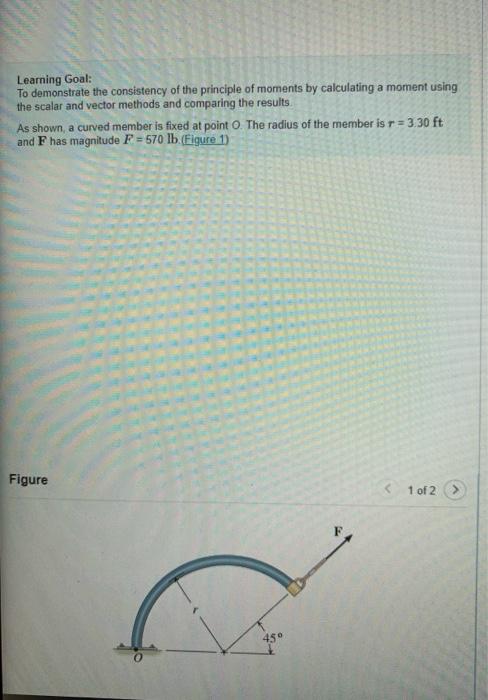

Learning Goal: To demonstrate the consistency of the principle of moments by calculating a moment using the scalar and vector methods and comparing the results. As shown, a curved member is fixed at point O. The radius of the member is r = 3.30 ft and F has magnitude F=570 lb. (Figure 1) Figure 45° < 1 of 2

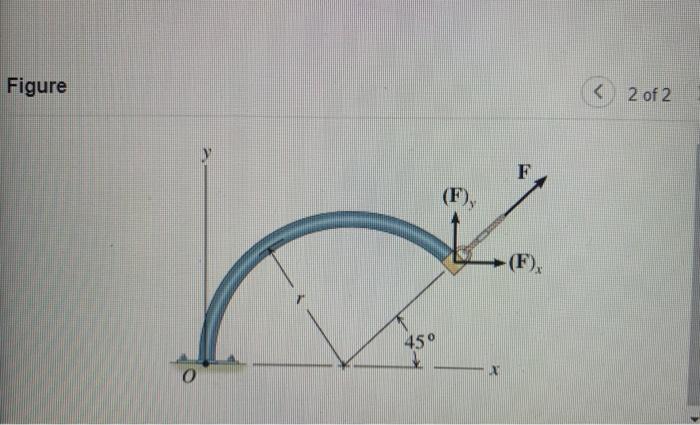

Figure 0 y 45⁰ F < 2 of 2

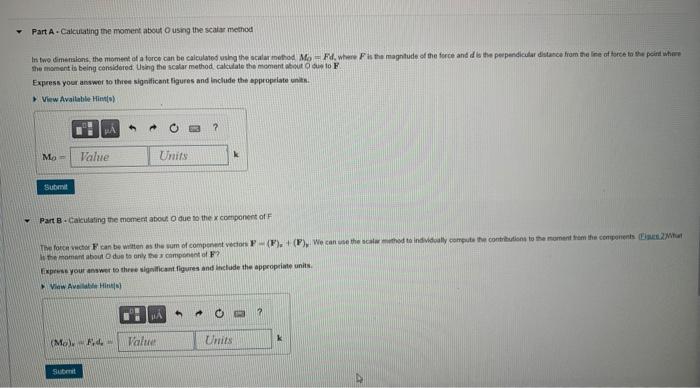

Part A Calculating the moment about O using the scalar method In two dimensions, the moment of a force can be calculated using the scalar method Mo-Fd, where F is the magnitude of the force and d is the perpendicular distance from the line of force to the point where the moment is being considered Using the scalar method, calculate the moment about O due to F. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) Mo- Submit A Value (Mo). F.d. Submit Y Part B Calculating the moment about O due to the x component of F The force vector F can be written as the sum of component vectors P-(F). + (P), We can use the scalar method to individually compute the contributions to the moment from the components (Eigues 2What is the moment about O due to only the component of F? Express your answer to three significant figures and include the appropriate units. View Available Hints) Units μA Value ? h ^ O Units ? k

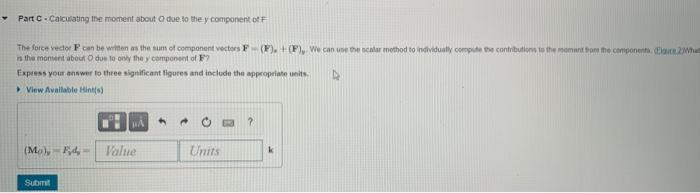

Part C-Calculating the moment about O due to the y component of F The force vector F can be written as the sum of component vectors F-(F). (F), We can use the scalar method to individually compute the contributions to the moment from the components. Elaucs 2What is the moment about O due to only the y component of F Express your answer to three significant figures and include the appropriate units. View Available Hint(s) (Mo), Fid- Submit HA Value 4 → Units B ?
