Problem 1 Member AB has a rectangular cross-section of 16 X 24 mm. For the loading shown with d = 55 mm and P = 35 kN. a

[answerhappygod]

Problem 1 Member Ab Has A Rectangular Cross Section Of 16 X 24 Mm For The Loading Shown With D 55 Mm And P 35 Kn A 1 (21.94 KiB) Viewed 17 times

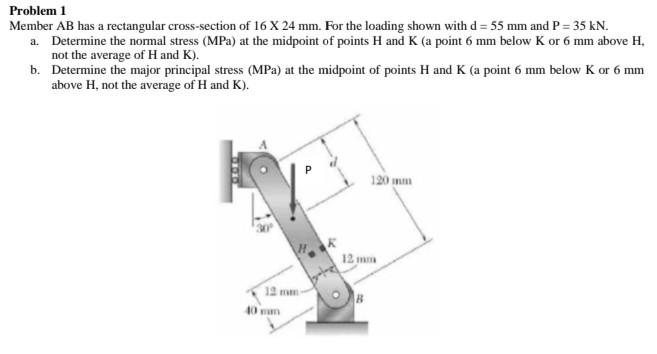

Problem 1 Member AB has a rectangular cross-section of 16 X 24 mm. For the loading shown with d = 55 mm and P = 35 kN. a. Determine the normal stress (MPa) at the midpoint of points H and K (a point 6 mm below K or 6 mm above H, not the average of H and K). b. Determine the major principal stress (MPa) at the midpoint of points H and K (a point 6 mm below K or 6 mm above H, not the average of H and K). 12 mm- 40 mm 120 mm 12 mm
