Q1 (7 Points): Draw the influence lines for (a) the vertical reaction at A, (b) the internal shear force at D, and (c) t

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q1 (7 Points): Draw the influence lines for (a) the vertical reaction at A, (b) the internal shear force at D, and (c) t

Post by answerhappygod »

Q1 7 Points Draw The Influence Lines For A The Vertical Reaction At A B The Internal Shear Force At D And C T 1
Q1 7 Points Draw The Influence Lines For A The Vertical Reaction At A B The Internal Shear Force At D And C T 1 (21.35 KiB) Viewed 32 times

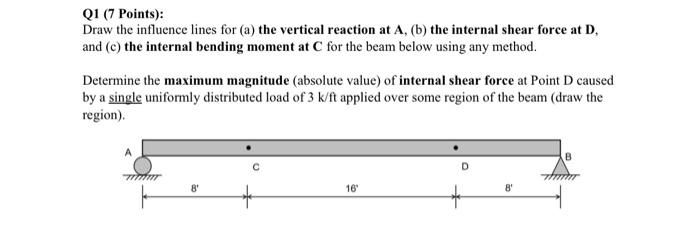

Q1 (7 Points): Draw the influence lines for (a) the vertical reaction at A, (b) the internal shear force at D, and (c) the internal bending moment at C for the beam below using any method. Determine the maximum magnitude (absolute value) of internal shear force at Point D caused by a single uniformly distributed load of 3 k/ft applied over some region of the beam (draw the region). 8' 16" 8'
