For the following hyperstatic truss structure determine the force in member AC using the superposition method Note: take

Post by answerhappygod »

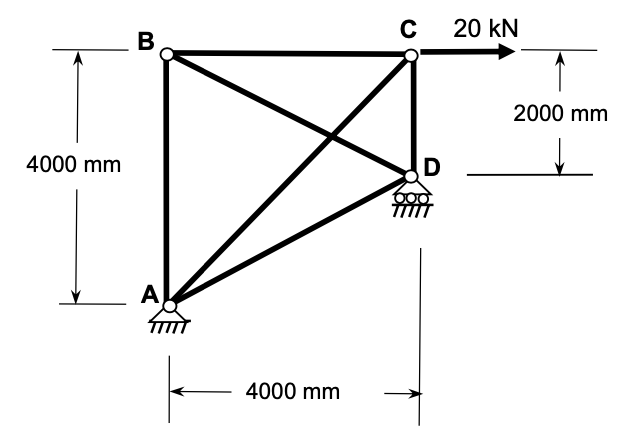

For the following hyperstatic truss structure determine theforce in member AC using the superposition methodNote: take AC as the superabundant bar.Calculate the force in the member AC when it experiences atemperature increase of 50 degrees C in addition to the effect ofthe applied loads on the structure.
For The Following Hyperstatic Truss Structure Determine The Force In Member Ac Using The Superposition Method Note Take 1
For The Following Hyperstatic Truss Structure Determine The Force In Member Ac Using The Superposition Method Note Take 1 (31.56 KiB) Viewed 28 times
4000 mm B A - 4000 mm C 20 KN D 2000 mm
