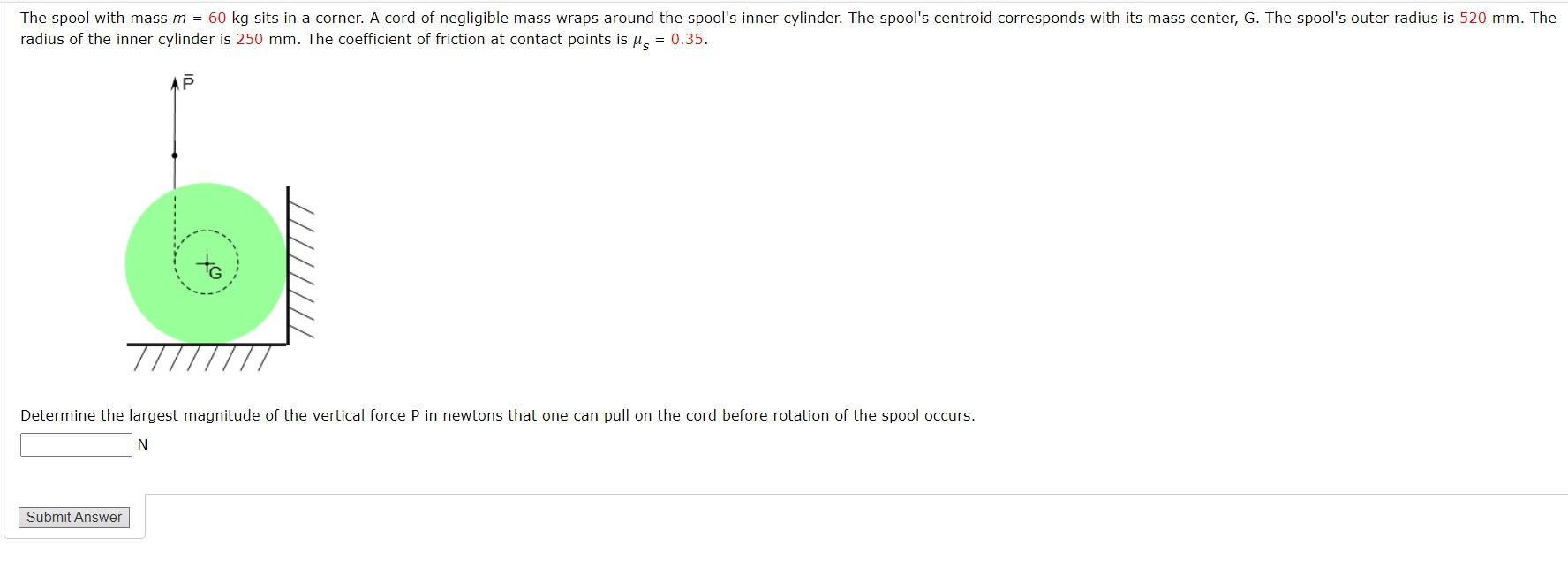

The Spool With Mass M 60 Kg Sits In A Corner A Cord Of Negligible Mass Wraps Around The Spool S Inner Cylinder The S 1 (61.25 KiB) Viewed 68 times
The spool withmass m = 60 kg sitsin a corner. A cord of negligible mass wraps around the spool'sinner cylinder. The spool's centroid corresponds with its masscenter, G. The spool's outer radiusis 520 mm. The radius of the inner cylinderis 250 mm. The coefficient offriction at contact pointsis 𝜇s = 0.35
Determine the largest magnitude of the verticalforce P in newtons that one canpull on the cord before rotation of the spool occurs.
The spool with mass m = 60 kg sits in a corner. A cord of negligible mass wraps around the spool's inner cylinder. The spool's centroid corresponds with its mass center, G. The spool's outer radius is 520 mm. The radius of the inner cylinder is 250 mm. The coefficient of friction at contact points is ÎĽ = 0.35. P Submit Answer to Determine the largest magnitude of the vertical force P in newtons that one can pull on the cord before rotation of the spool occurs. N
