In the circuit of Figure Q.4, V(t) is a constant input of 2V, starting at t = 0. Calculate values of R and C for V.(t) t

[answerhappygod]

In The Circuit Of Figure Q 4 V T Is A Constant Input Of 2v Starting At T 0 Calculate Values Of R And C For V T T 1 (226.56 KiB) Viewed 35 times

4

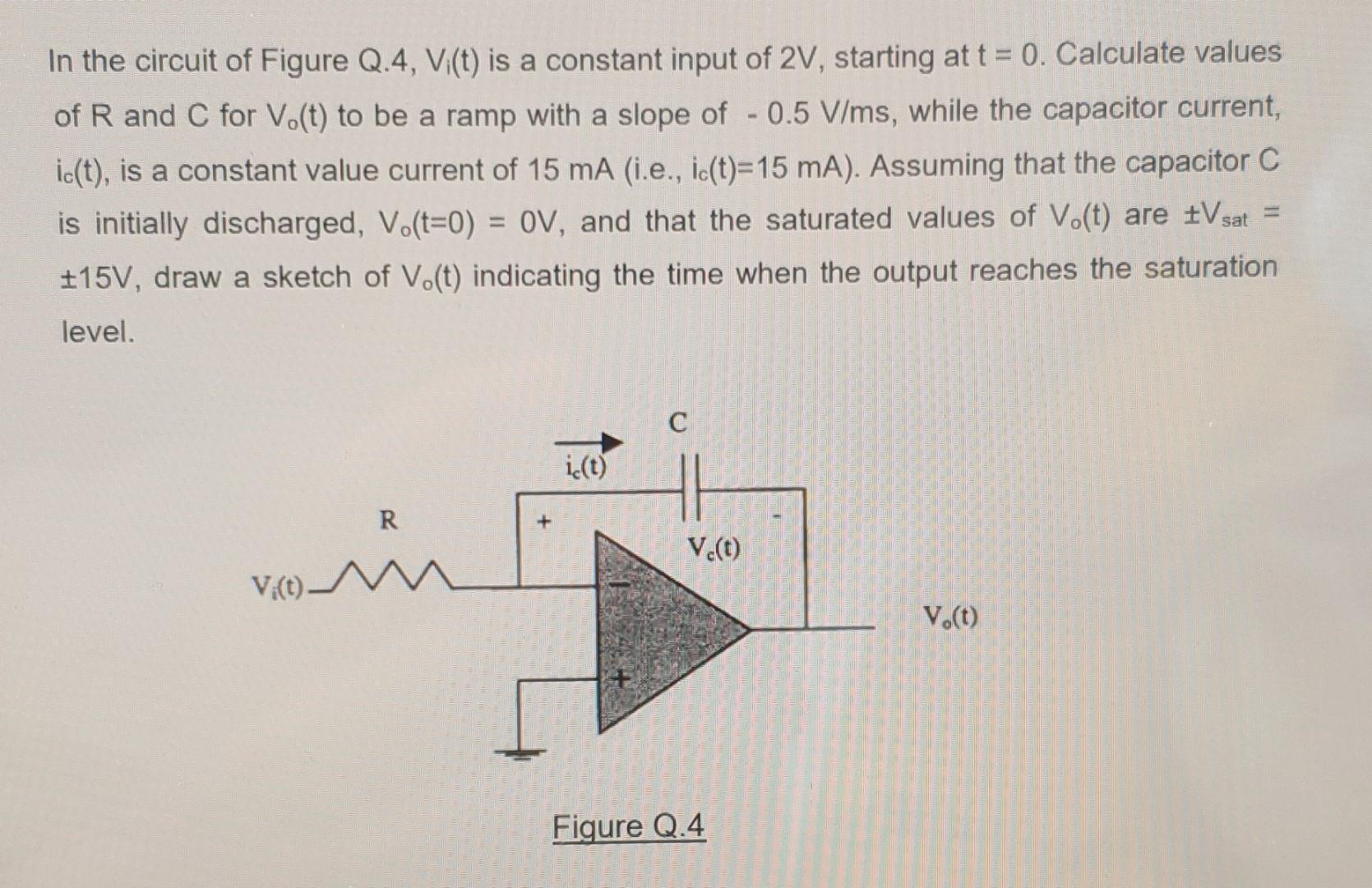

In the circuit of Figure Q.4, V(t) is a constant input of 2V, starting at t = 0. Calculate values of R and C for V.(t) to be a ramp with a slope of - 0.5 V/ms, while the capacitor current, ic(t), is a constant value current of 15 mA (i.e., ic(t)=15 mA). Assuming that the capacitor C is initially discharged, V.(t=0) = OV, and that the saturated values of V.(t) are Vsat = #15V, draw a sketch of Vo(t) indicating the time when the output reaches the saturation level. C it) R Vet) V:(t) V.0 Figure Q.4
