A spherical particle of diameter D₁ = 10 mm is suspended by a thin wire within a cylindrical tube of inner diameter D₂ =

[answerhappygod]

A Spherical Particle Of Diameter D 10 Mm Is Suspended By A Thin Wire Within A Cylindrical Tube Of Inner Diameter D 1 (48.83 KiB) Viewed 28 times

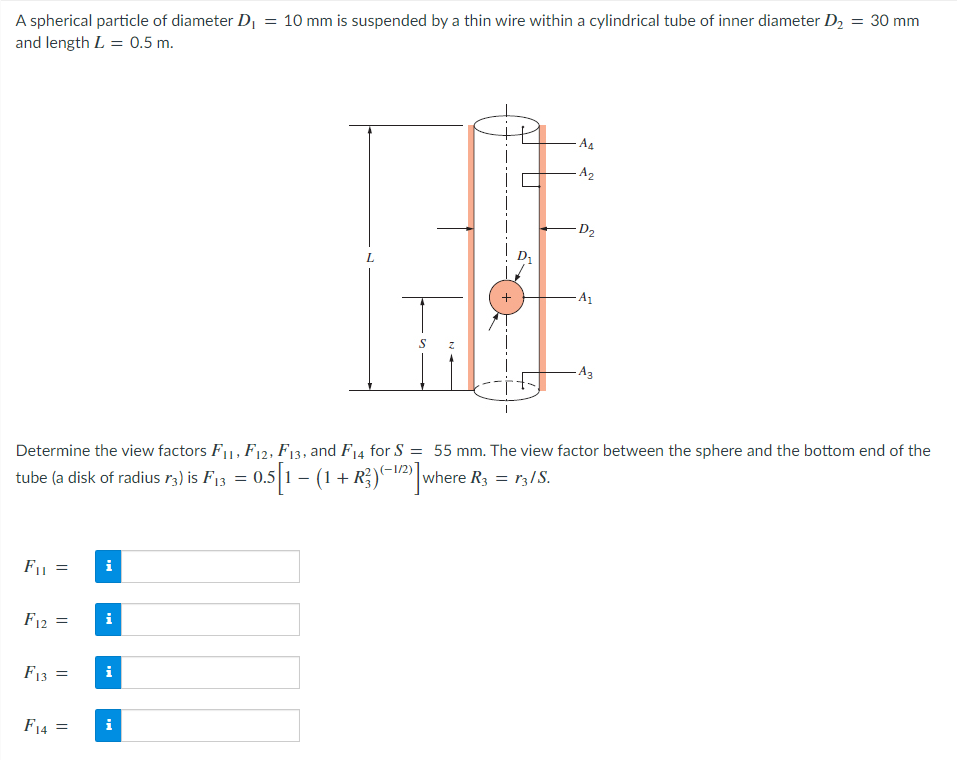

A spherical particle of diameter D₁ = 10 mm is suspended by a thin wire within a cylindrical tube of inner diameter D₂ = 30 mm and length L = 0.5 m. F₁1 F12 F13 = = Determine the view factors F1, F12, F13, and F₁4 for S = 55 mm. The view factor between the sphere and the bottom end of the tube (a disk of radius 3) is F₁3 = 0.5[1 − (1 + R²)(-1/²)] where R3 = 13/S. = F14 = i i i + i A4 A₂ -D₂ -A₁ -A3
