- Figure Q6 Shows A Transversely Loaded Beam With 1 One Point Load A Uniformly Distributed Load Udl And A Bending Mom 1 (38.64 KiB) Viewed 30 times

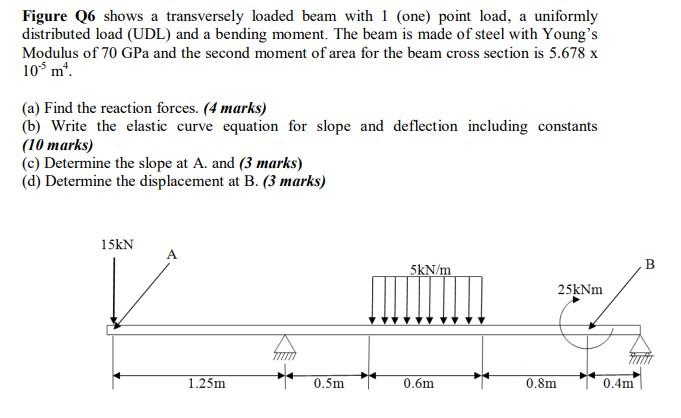

Figure Q6 shows a transversely loaded beam with 1 (one) point load, a uniformly distributed load (UDL) and a bending moment. The beam is made of steel with Young's Modulus of 70 GPa and the second moment of area for the beam cross section is 5.678 x 105 m². (a) Find the reaction forces. (4 marks) (b) Write the elastic curve equation for slope and deflection including constants (10 marks) (c) Determine the slope at A. and (3 marks) (d) Determine the displacement at B. (3 marks) 15kN 1.25m 0.5m 5kN/m 0.6m 0.8m 25kNm 0.4m B
