! Required information Problem 04.100 - Rectangular column with eccentric load A small post DE is supported by a short 1

Post by answerhappygod »

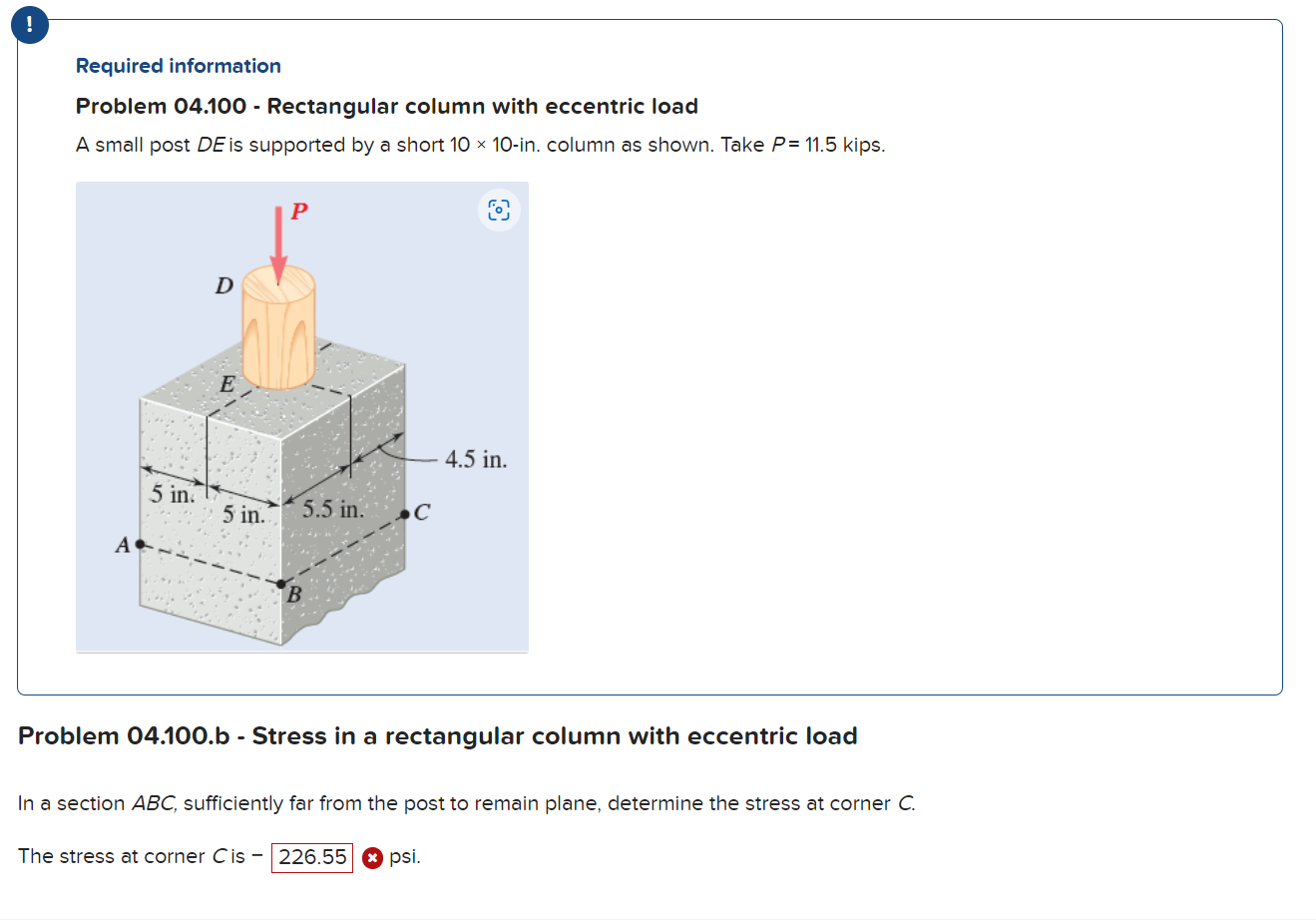

Required Information Problem 04 100 Rectangular Column With Eccentric Load A Small Post De Is Supported By A Short 1 1
Required Information Problem 04 100 Rectangular Column With Eccentric Load A Small Post De Is Supported By A Short 1 1 (150.19 KiB) Viewed 24 times
! Required information Problem 04.100 - Rectangular column with eccentric load A small post DE is supported by a short 10 x 10-in. column as shown. Take P= 11.5 kips. A 5 in. D E 5 in. P 5.5 in. B C 4.5 in. Problem 04.100.b - Stress in a rectangular column with eccentric load In a section ABC, sufficiently far from the post to remain plane, determine the stress at corner C. The stress at corner Cis - 226.55 psi.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
