Problem C-1 [Shear Force and Bending Moment Diagrams (Short-Cut)] Draw the shear force and bending moment diagrams for t

[answerhappygod]

Problem C 1 Shear Force And Bending Moment Diagrams Short Cut Draw The Shear Force And Bending Moment Diagrams For T 1 (20.27 KiB) Viewed 20 times

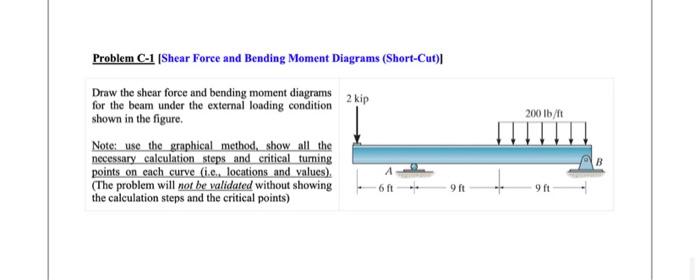

Problem C-1 [Shear Force and Bending Moment Diagrams (Short-Cut)] Draw the shear force and bending moment diagrams for the beam under the external loading condition shown in the figure. Note: use the graphical method, show all the necessary calculation steps and critical turning points on each curve (i.c., locations and values), (The problem will not be validated without showing the calculation steps and the critical points) 2 kip 6 ft 9 ft 200 lb/ft 9 ft B
