The slotted arm OA forces the small pin to move in the fixed spiral guide defined by r = Ke where is measured in radians

Post by answerhappygod »

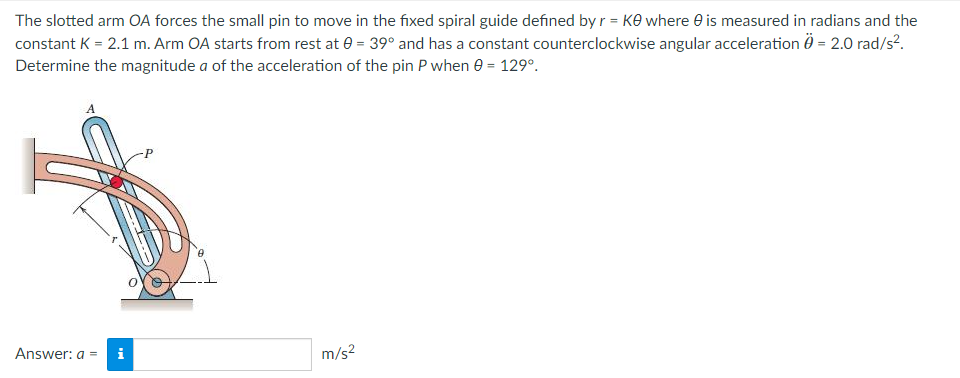

The Slotted Arm Oa Forces The Small Pin To Move In The Fixed Spiral Guide Defined By R Ke Where Is Measured In Radians 1
The Slotted Arm Oa Forces The Small Pin To Move In The Fixed Spiral Guide Defined By R Ke Where Is Measured In Radians 1 (71.83 KiB) Viewed 32 times
The slotted arm OA forces the small pin to move in the fixed spiral guide defined by r = Ke where is measured in radians and the constant K = 2.1 m. Arm OA starts from rest at 0 = 39° and has a constant counterclockwise angular acceleration € = 2.0 rad/s². Determine the magnitude a of the acceleration of the pin P when 0 = 129º. Answer: a = m/s²
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
