(2). In a crank-slider mechanism, two sets of corresponding positions between the slider and a line segment AE on the cr

[answerhappygod]

2 In A Crank Slider Mechanism Two Sets Of Corresponding Positions Between The Slider And A Line Segment Ae On The Cr 1 (44.67 KiB) Viewed 28 times

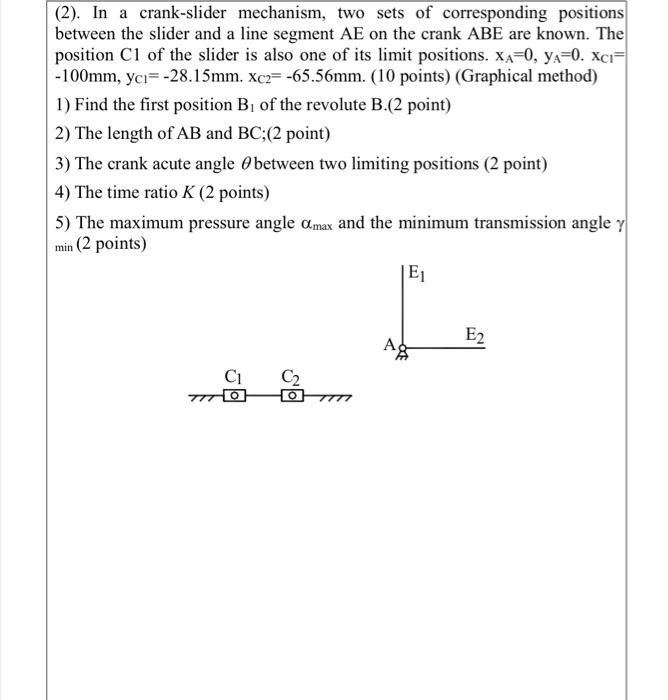

(2). In a crank-slider mechanism, two sets of corresponding positions between the slider and a line segment AE on the crank ABE are known. The position C1 of the slider is also one of its limit positions. XA-0, YA-0. XCI -100mm, ycı= -28.15mm. xc2= -65.56mm. (10 points) (Graphical method) 1) Find the first position B₁ of the revolute B.(2 point) 2) The length of AB and BC;(2 point) 3) The crank acute angle between two limiting positions (2 point) 4) The time ratio K (2 points) 5) The maximum pressure angle amax and the minimum transmission angle y min (2 points) E₁ C1 C₂ E2
