(4) For a pair of external standard spur gears, Z₁-18, Z2-37, ha-1, c*-0.25, m=5, a=20°: 1) To calculate diameters for a
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
(4) For a pair of external standard spur gears, Z₁-18, Z2-37, ha-1, c*-0.25, m=5, a=20°: 1) To calculate diameters for a

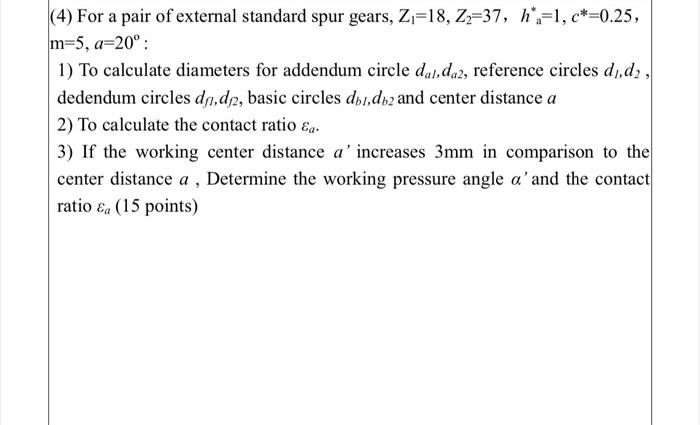

(4) For a pair of external standard spur gears, Z₁-18, Z2-37, ha-1, c*-0.25, m=5, a=20°: 1) To calculate diameters for addendum circle dal,da2, reference circles d₁d2, dedendum circles dj,dj, basic circles db,db2 and center distance a 2) To calculate the contact ratio &q. 3) If the working center distance a' increases 3mm in comparison to the center distance a, Determine the working pressure angle a' and the contact ratio &a (15 points)
