The basic mechanism of a small internal combustion engine prototype comprises of crank shaft, connecting rod and piston

[answerhappygod]

The Basic Mechanism Of A Small Internal Combustion Engine Prototype Comprises Of Crank Shaft Connecting Rod And Piston 1 (62.8 KiB) Viewed 26 times

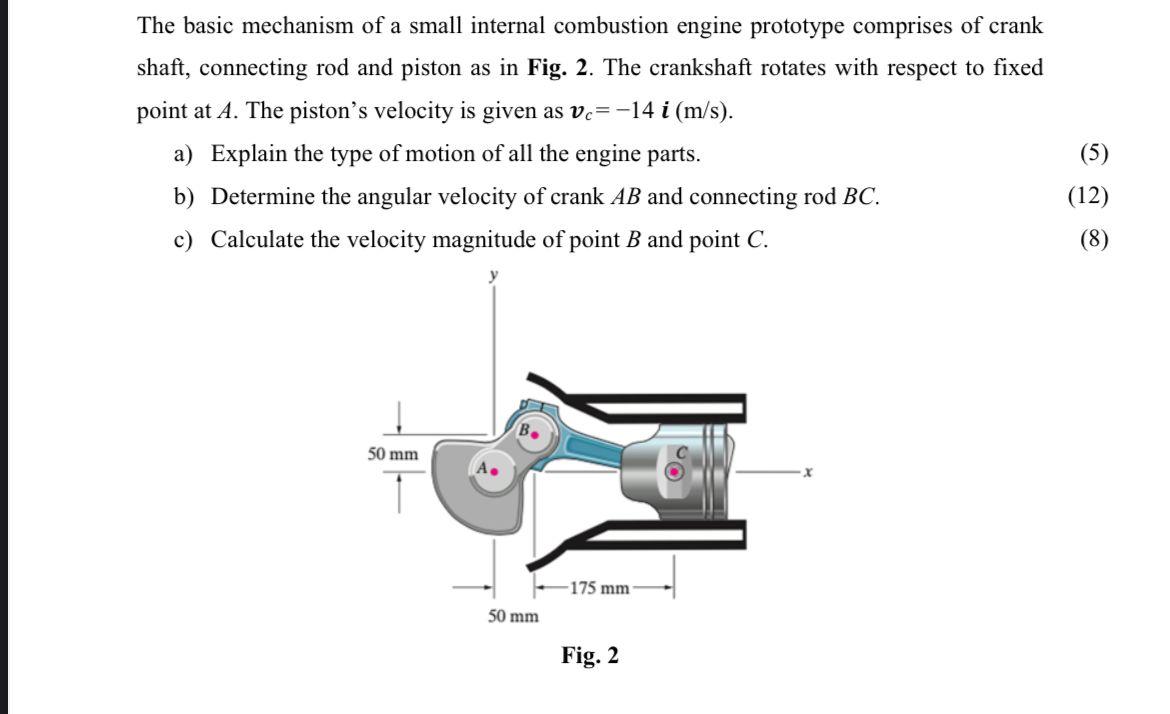

The basic mechanism of a small internal combustion engine prototype comprises of crank shaft, connecting rod and piston as in Fig. 2. The crankshaft rotates with respect to fixed point at A. The piston's velocity is given as vc= -14 i (m/s). a) Explain the type of motion of all the engine parts. b) Determine the angular velocity of crank AB and connecting rod BC. c) Calculate the velocity magnitude of point B and point C. 50 mm 50 mm 175 mm Fig. 2 (5) (12) (8)
