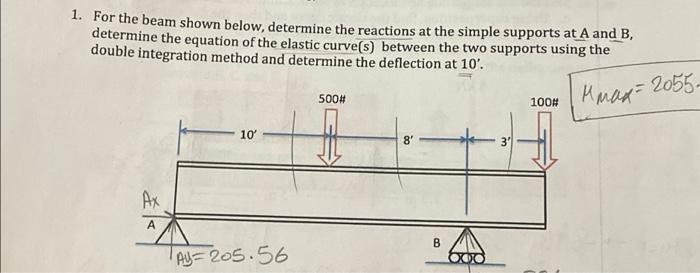

1. For the beam shown below, determine the reactions at the simple supports at A and B, determine the equation of the elastic curve(s) between the two supports using the double integration method and determine the deflection at 10'. Ax A 10' Ay=205.56 500# 8' B 100# м так = 2055-

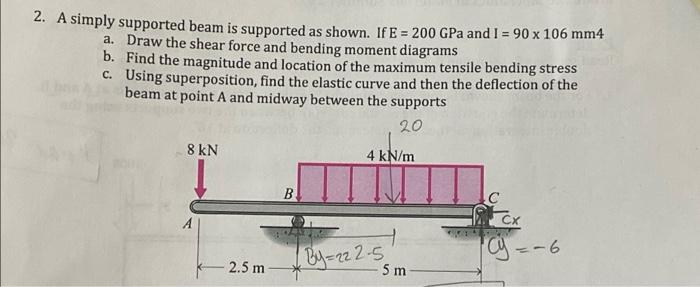

2. A simply supported beam is supported as shown. If E = 200 GPa and I = 90 x 106 mm4 a. Draw the shear force and bending moment diagrams b. Find the magnitude and location of the maximum tensile bending stress c. Using superposition, find the elastic curve and then the deflection of the beam at point A and midway between the supports 20 8 kN A 2.5 m B 4 kN/m By=222-5 5 m C Cx cy=-6
