The 1700-kg car in Figure 3 is just beginning to negotiate the 16° ramp. If the car has rear-wheel drive, determine the

Post by answerhappygod »

The 1700 Kg Car In Figure 3 Is Just Beginning To Negotiate The 16 Ramp If The Car Has Rear Wheel Drive Determine The 1
The 1700 Kg Car In Figure 3 Is Just Beginning To Negotiate The 16 Ramp If The Car Has Rear Wheel Drive Determine The 1 (113.23 KiB) Viewed 34 times
Please help me do this question in detail.

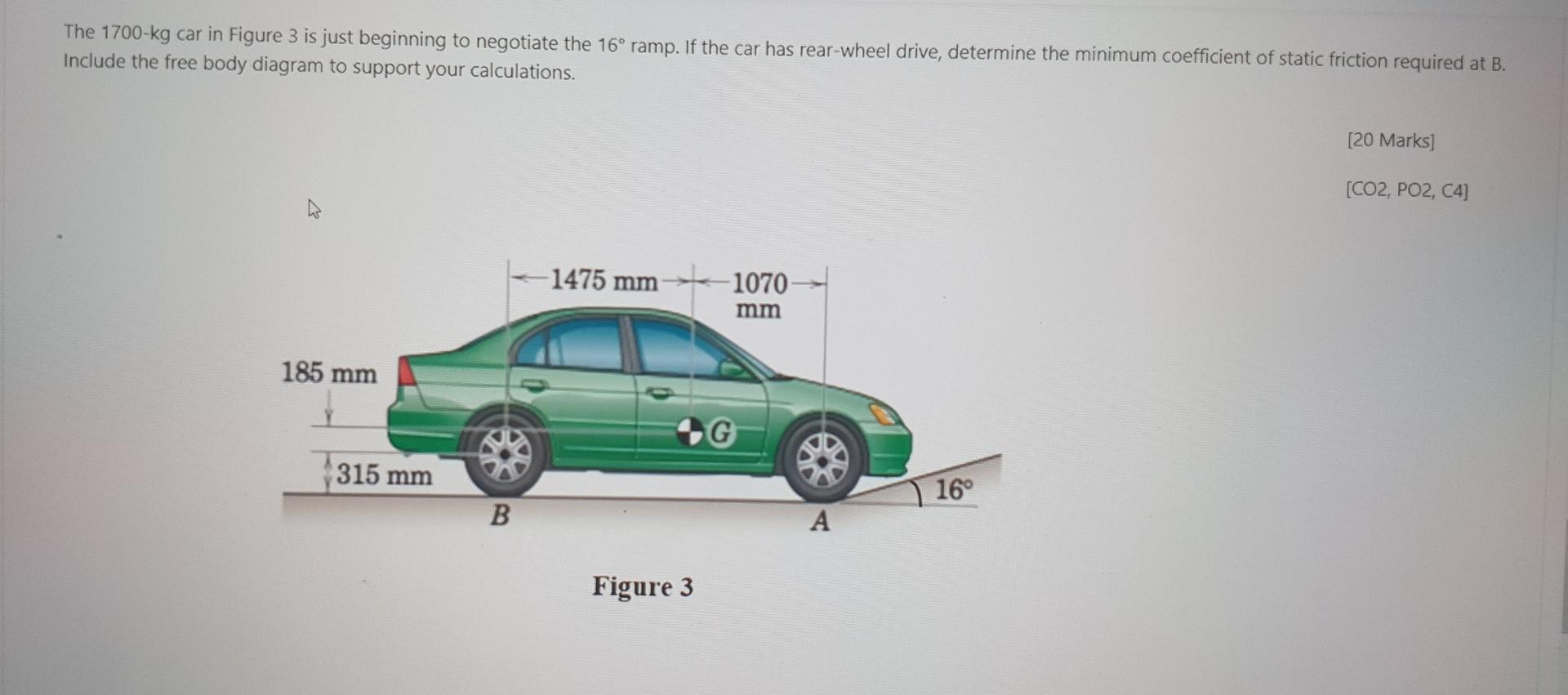

The 1700-kg car in Figure 3 is just beginning to negotiate the 16° ramp. If the car has rear-wheel drive, determine the minimum coefficient of static friction required at B. Include the free body diagram to support your calculations. 185 mm 315 mm B -1475 mm Figure 3 -1070- mm A 16° [20 Marks] [CO2, PO2, C4]
