Required Information Problem 04 118 Eccentric Compression In A T Beam A Vertical Force Pof Magnitude 17 Kips Is Applie 1 (105.63 KiB) Viewed 28 times

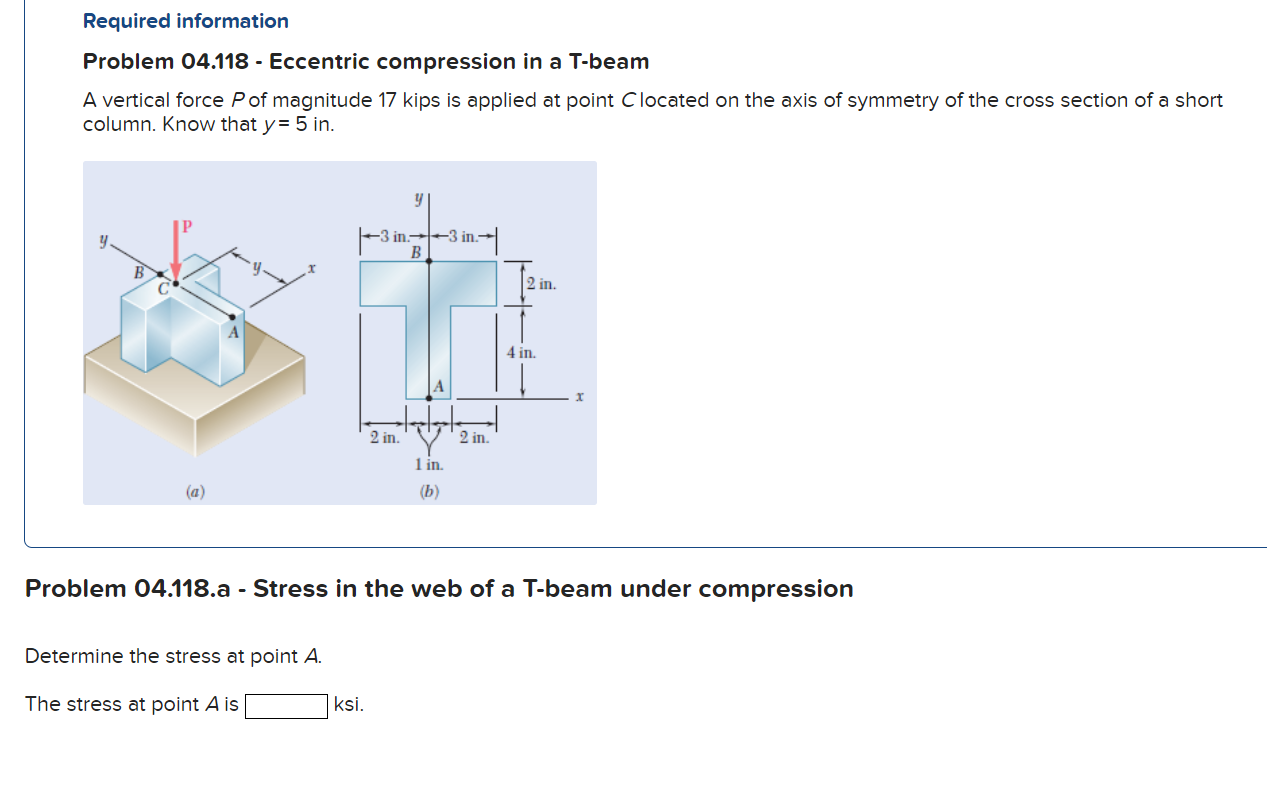

Required information Problem 04.118 - Eccentric compression in a T-beam A vertical force Pof magnitude 17 kips is applied at point Clocated on the axis of symmetry of the cross section of a short column. Know that y= 5 in. (a) y -3 in.3 in. B Determine the stress at point A. The stress at point A is 2 in. ksi. 1 in. (b) 2 in. 2 in. Problem 04.118.a - Stress in the web of a T-beam under compression 4 in.
Problem 04.118.b - Stress in the flange of a T-beam under compression Determine the stress at point B. The stress at point B is ksi.
Problem 04.118.c - Locating the neutral axis Determine the location of the neutral axis. The neutral axis lies in. above point A.
