Beams: 3e The wooden (E=1.6 ksi) beam/bar is subjected to the loads P and moment M as shown. For P-2 kips and M-12 k-in,

[answerhappygod]

Beams 3e The Wooden E 1 6 Ksi Beam Bar Is Subjected To The Loads P And Moment M As Shown For P 2 Kips And M 12 K In 1 (126.66 KiB) Viewed 25 times

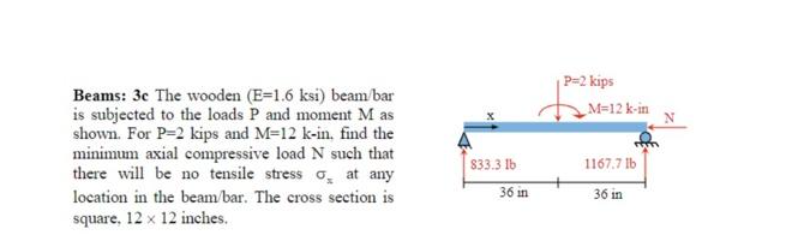

Beams: 3e The wooden (E=1.6 ksi) beam/bar is subjected to the loads P and moment M as shown. For P-2 kips and M-12 k-in, find the minimum axial compressive load N such that there will be no tensile stress o at any location in the beam/bar. The cross section is square, 12 x 12 inches. 833.3 lb 36 in P=2 kips M=12 k-in 1167.7 lb 36 in
