For the given state of stress shown below determine the principal stresses, the in-plane maximum shear stress, and absol

Post by answerhappygod »

For The Given State Of Stress Shown Below Determine The Principal Stresses The In Plane Maximum Shear Stress And Absol 1
For The Given State Of Stress Shown Below Determine The Principal Stresses The In Plane Maximum Shear Stress And Absol 1 (87.64 KiB) Viewed 29 times

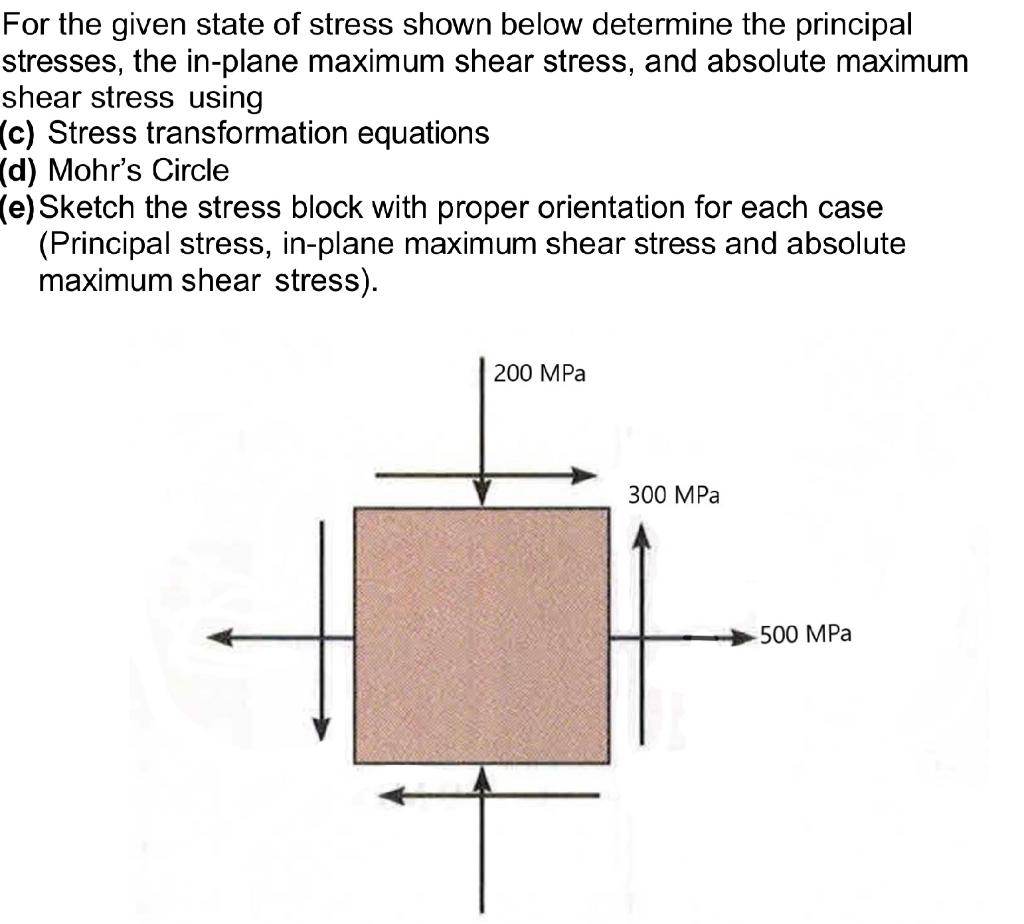

For the given state of stress shown below determine the principal stresses, the in-plane maximum shear stress, and absolute maximum shear stress using (c) Stress transformation equations (d) Mohr's Circle (e) Sketch the stress block with proper orientation for each case (Principal stress, in-plane maximum shear stress and absolute maximum shear stress). 200 MPa 300 MPa 500 MPa
