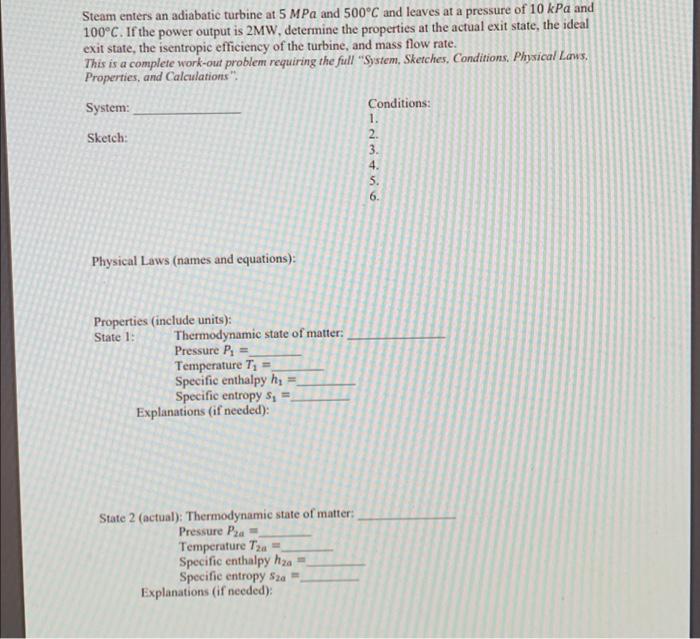

Steam enters an adiabatic turbine at 5 MPa and 500°C and leaves at a pressure of 10 kPa and 100°C. If the power output is 2MW, determine the properties at the actual exit state, the ideal exit state, the isentropic efficiency of the turbine, and mass flow rate. This is a complete work-out problem requiring the full "System, Sketches, Conditions. Physical Laws. Properties, and Calculations". System: Sketch: Physical Laws (names and equations): Properties (include units): State 1: Thermodynamic state of matter: Pressure P₁ = Temperature T₁ = Specific enthalpy h₁ =_ Specific entropy S₁ = Explanations (if needed): State 2 (actual): Thermodynamic state of matter: Pressure Pa Temperature T2a =_ Specific enthalpy haa Specific entropy Sza Explanations (if needed): Conditions: - 1. 2. 3. 4. 5. 6.

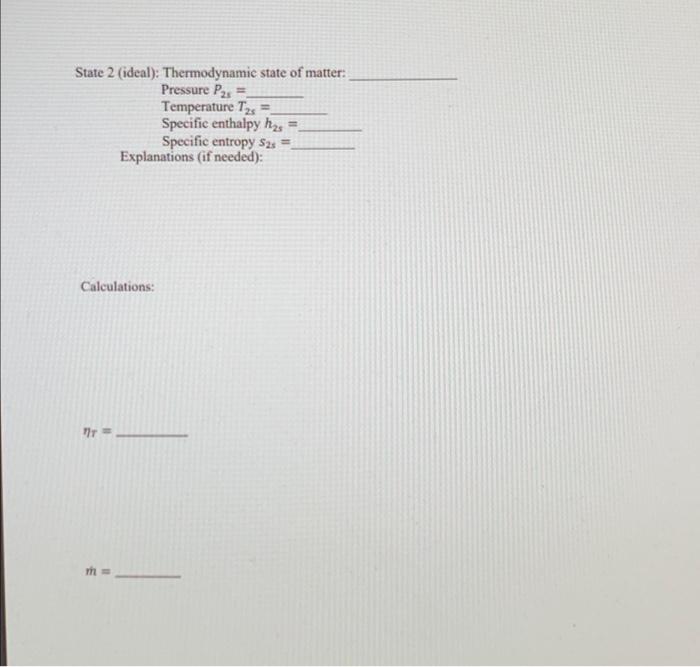

State 2 (ideal): Thermodynamic state of matter: Pressure P2 = Temperature T2 = Specific enthalpy h₂s = Specific entropy $2s= Explanations (if needed): Calculations: "T= m=
