X Problem 1 (20 Points) Z 6m 5m 5m C 8m 00 11m Note the single smooth pin is drawn as the light blue square on the figur

[answerhappygod]

X Problem 1 20 Points Z 6m 5m 5m C 8m 00 11m Note The Single Smooth Pin Is Drawn As The Light Blue Square On The Figur 1 (114.57 KiB) Viewed 25 times

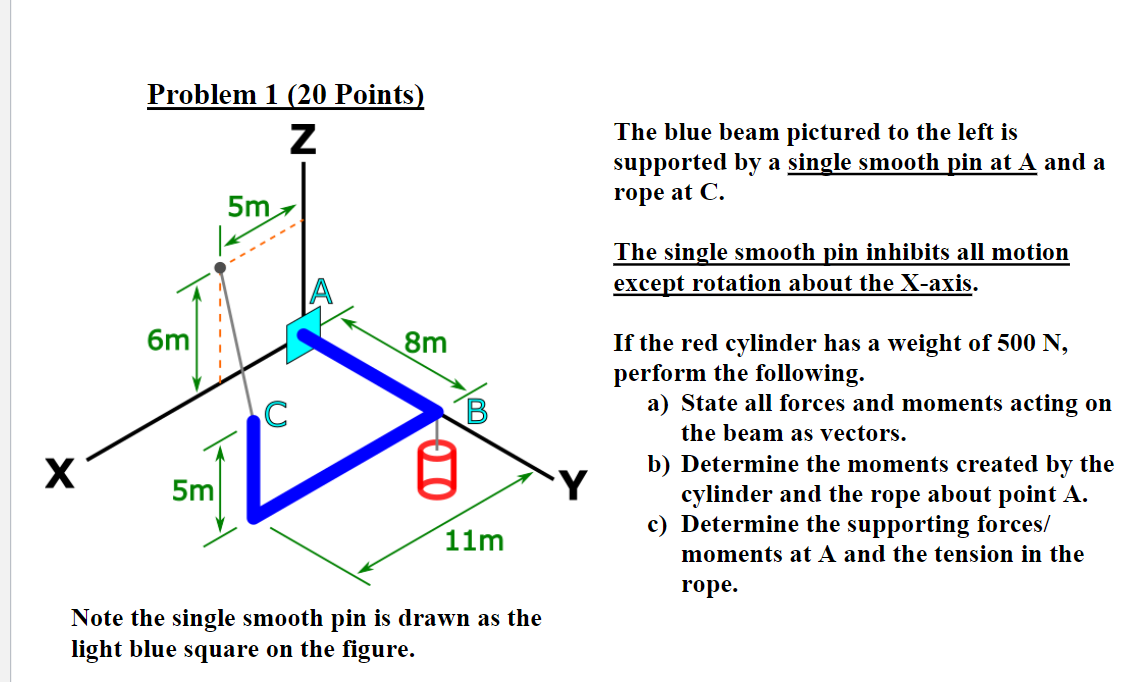

X Problem 1 (20 Points) Z 6m 5m 5m C 8m 00 11m Note the single smooth pin is drawn as the light blue square on the figure. The blue beam pictured to the left is supported by a single smooth pin at A and a rope at C. The single smooth pin inhibits all motion except rotation about the X-axis. If the red cylinder has a weight of 500 N, perform the following. a) State all forces and moments acting on the beam as vectors. b) Determine the moments created by the cylinder and the rope about point A. c) Determine the supporting forces/ moments at A and the tension in the rope.
