! Required Information A countershaft carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a

[answerhappygod]

Required Information A Countershaft Carrying Two V Belt Pulleys Is Shown In The Figure Pulley A Receives Power From A 1 (173.42 KiB) Viewed 21 times

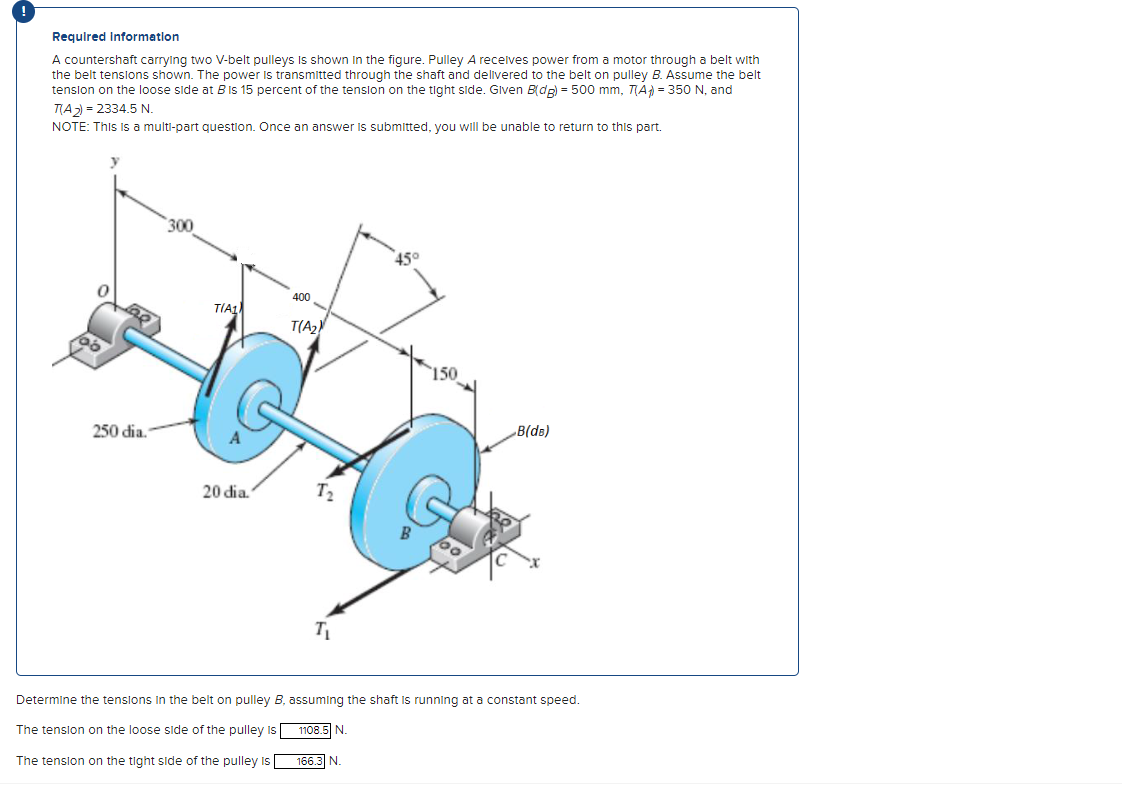

! Required Information A countershaft carrying two V-belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tensions shown. The power is transmitted through the shaft and delivered to the belt on pulley B. Assume the belt tension on the loose side at B is 15 percent of the tension on the tight side. Given Bldg) = 500 mm, 7(A) = 350 N, and T(A₂) = 2334.5 N. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. 250 dia. 300 TIA1 20 dia. 400 T(A₂) T₁ 45° 166. N. 150 B(dB) Determine the tensions in the belt on pulley B, assuming the shaft is running at a constant speed. The tension on the loose side of the pulley is 1108.5 N. The tension on the tight side of the pulley is
