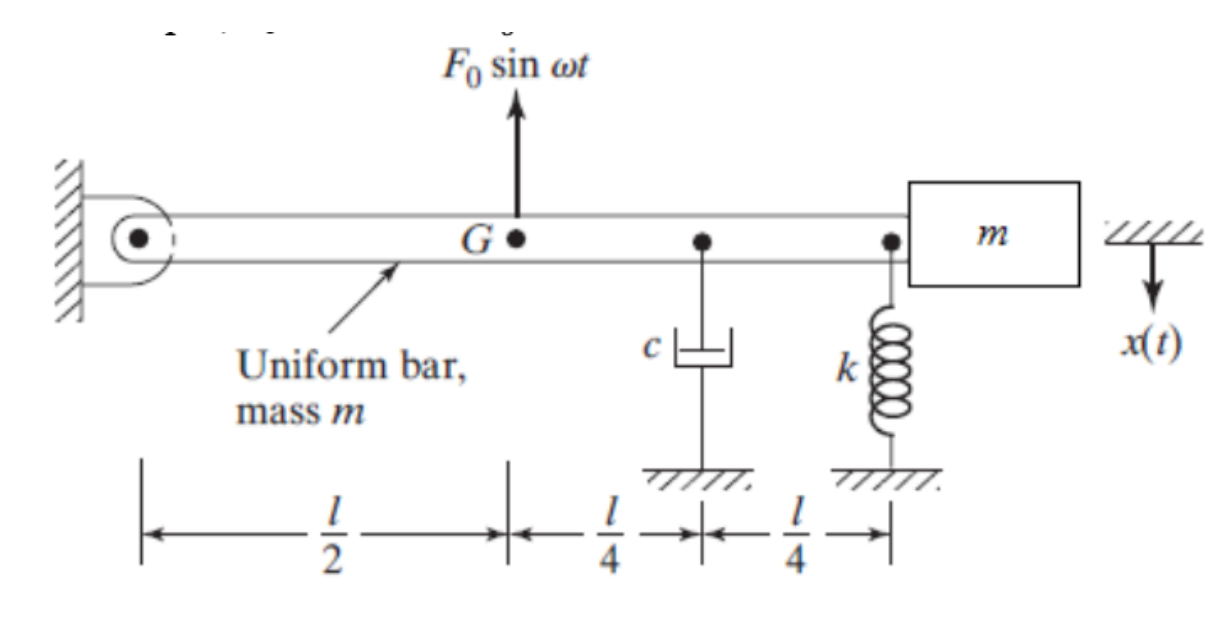

Observe a harmonically excited slender bar as shown in FigureBelow. If:
For the mentioned conditions:
1. Derive the governing equation for the system shown in thefigure, and find the natural and damping frequencies.
2. Draw the magnification factor Vs. r
3. Draw the phase angle Vs. r
Observe A Harmonically Excited Slender Bar As Shown In Figure Below If For The Mentioned Conditions 1 Derive The Gov 1 (140.39 KiB) Viewed 23 times
p Fo sin ot 1/1/1 2 G Uniform bar, mass m +4 m 4444 Y x(t)
